Description

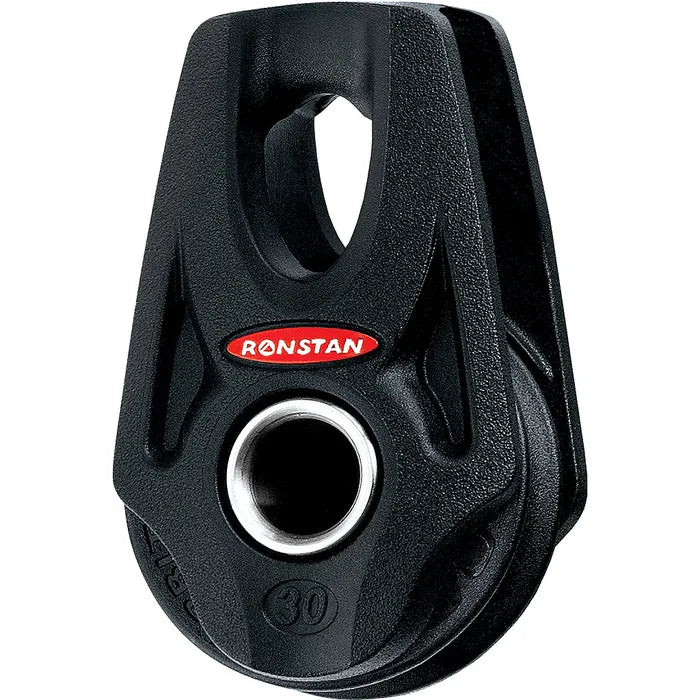

Single sheave block with becket and lashing head
FEATURES
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
SP versions feature a Nylatron® sheave suitable for both rope and wire.
Accepts RF1850S shackle in both orientations to create a conventional loop top block
SPECIFICATIONS
| Type of Block | Single |
|---|---|
| Sheave diameter (mm) | 30mm |
| B.L. (kg) | 600 |
| M.W.L. (kg) | 300 |
| Max. Rope diameter (mm) | 8 |
| Weight (g) | 22 |
