Description
Ruggedness squared: Highly abrasion-resistant and durable, perfectly suited as an anchor warp.
Indestructible
Extremely robust and durable, without hardening, best UV resistance.
Simply good

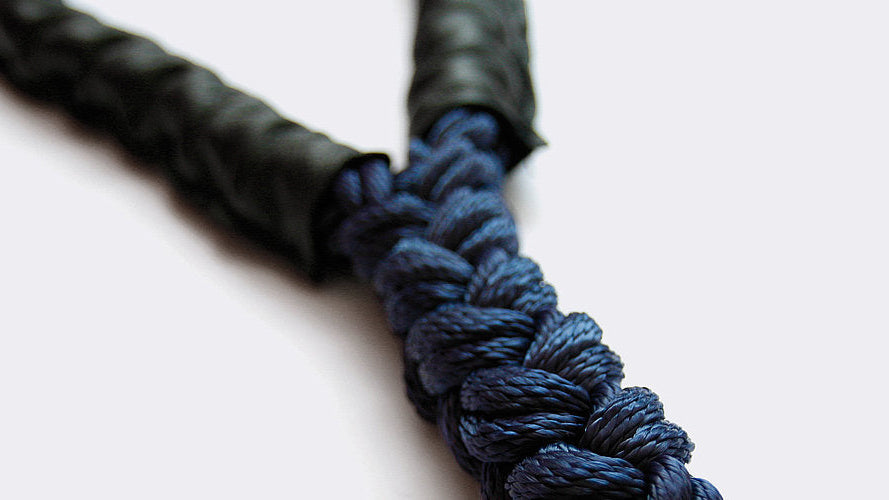

The grippy GeoSquare®is torsion-free, easy to splice and offers good grip on polished bollards.
Universal
Excellent mooring line, also suitable as an anchor warp due to its sag line in water.
Diameter
20 mm Ø - 48 mm Ø
Technical data
Elongation at 10% of the breaking load: 2.50 %
| Ø [mm] |
Weight [kg/100 m] |
Bl. real in splice [kN] |
Bl. linear DIN according to EN ISO 2307 [kN] |
|---|---|---|---|
| 20 mm Ø | 30.30 | 80.00 | 88.89 |
| 22 mm Ø | 36.70 | 97.00 | 107.78 |
| 24 mm Ø | 43.70 | 110.00 | 122.22 |
| 26 mm Ø | 51.20 | 122.00 | 135.56 |
| 28 mm Ø | 59.40 | 140.00 | 155.56 |
| 30 mm Ø | 68.20 | 159.00 | 176.67 |
| 32 mm Ø | 77.60 | 180.00 | 200.00 |
| 36 mm Ø | 98.20 | 226.00 | 251.11 |
| 40 mm Ø | 121.00 | 275.00 | 305.56 |
| 44 mm Ø | 147.00 | 350.00 | 388.89 |
| 48 mm Ø | 175.00 | 430.00 | 477.78 |
