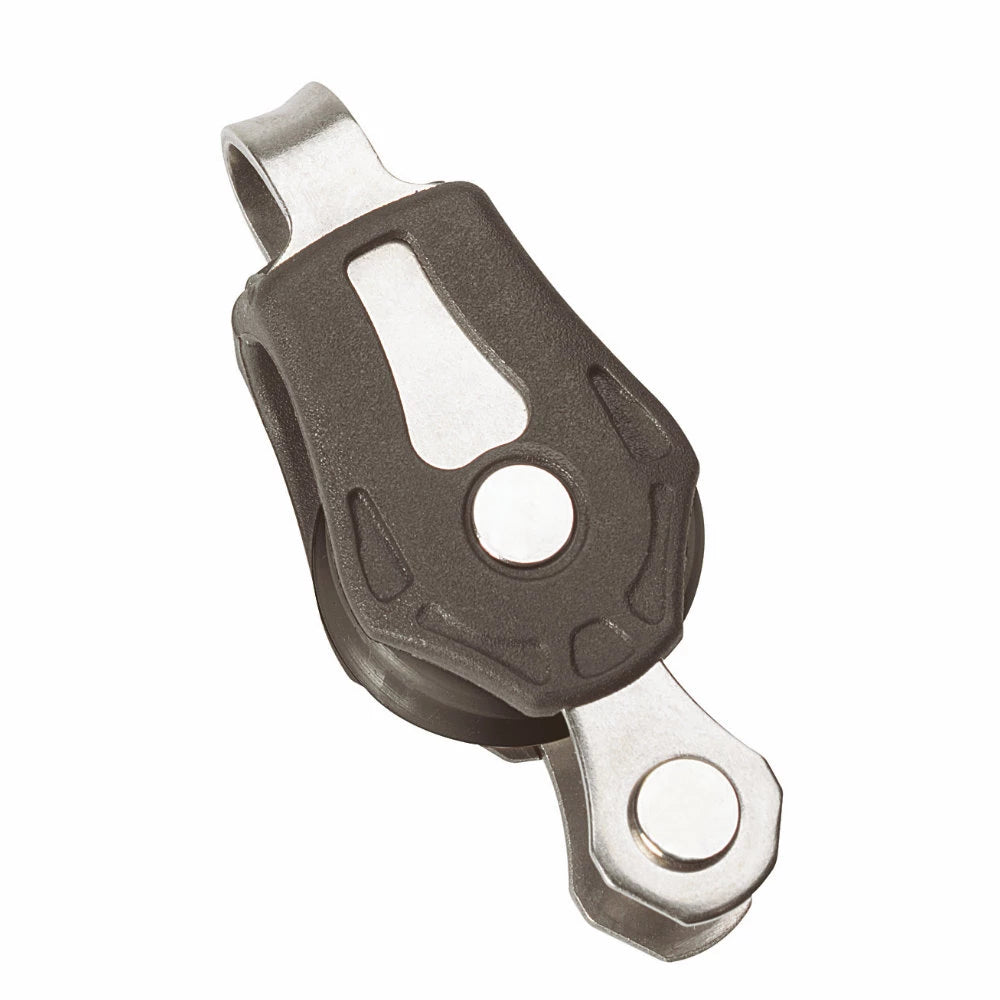

The Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. Designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).
Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats and smaller craft or lead blocks, flag pennants etc. on larger yachts
Additional information
| WEIGHT |
19 g |
| DIMENSIONS |
52 × 21 × 16 mm |
| SIZE |
0 (20MM)
|
| BLOCK TYPE |
Fixed Eye + Becket
|
| NO. OF SHEAVES |
Single
|
| BEARING TYPE |
Plain
|
| SHEAVE SIZE |
20mm x 8mm (25/32" x 5/16")
|
| MAX ROPE DIAMETER |
6mm (1/4")
|
| SWL |
275kg (606lbs)
|
| BREAK LOAD |
550kg (1210lbs)
|
| MAX ROLLING LOAD (BALL BEARING BLOCKS) |
130kg (286lbs)
|
| BRAND |
Barton
|
