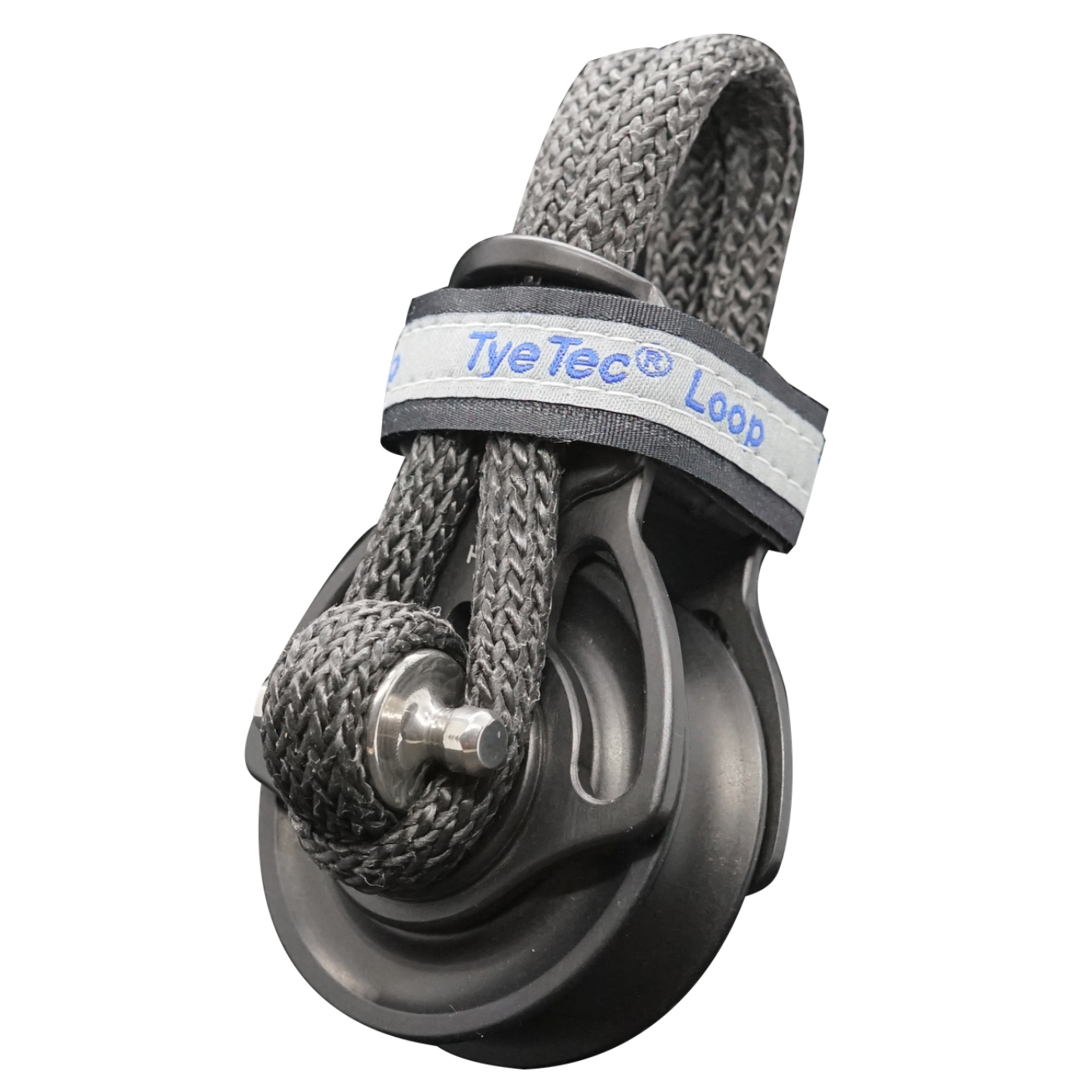

The new TyeTec block code black snatch block with two stage ball bearings. The cheek plates can be rotated for easy rope insertion. Lightweight, strong, safe, simple to use without tools. The Velcro is not necessary when use in hanging position.
Sheave: 45mm, 60mm, 80mm, 100mm, 120mm, 140mm
Side Plates: Milled Aluminum, Hard Anodised
Central Axis: Stainless Steel 1.4404
Loop: Dyneema SK78
Dogbone: Stainless Steel 1.4404
Size / Weight / Rope Size / Max Working Load
45mm - 80g - 10mm - 1400 daN
60mm - 200g - 12mm - 3000 daN
80mm - 420g - 16mm - 5000 daN
100mm - 830g - 20mm - 10000 daN
120mm - 1500g - 24mm - 20000 daN
140mm - 3100g - 30mm - 40000 daN
