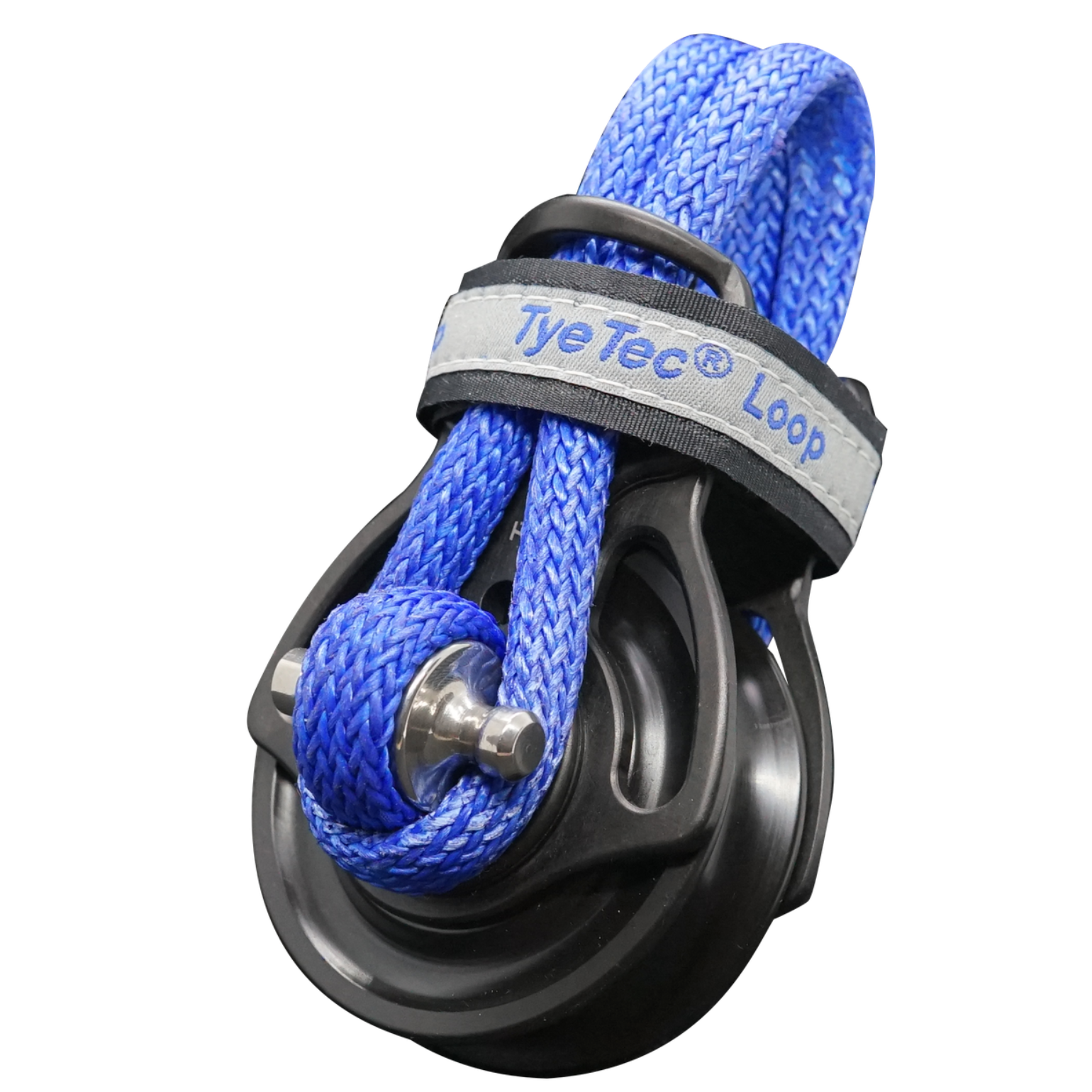

Code Blue SV Snatch Block

The new TyeTec block code blue snatch block with composite bearing, the cheek plates can be rotated for easy rope insertion. Lightweight, strong, safe, simple to use without tools. The Velcro is not necessary when use in hanging position.

Sheave: 45mm, 60mm, 80mm, 100mm, 120mm, 140mm

Side Plates: Milled Aluminum, Hard Anodised

Central Axis: Stainless Steel 1.4404

Bearing: Composite Slide Bearing

Loop: Dyneema SK78

Dogbone: Stainless Steel 1.4404

Size / Weight / Rope Size / Max Working Load

45mm - 80g - 10mm - 1400 daN

60mm - 200g - 12mm - 3000 daN

80mm - 420g - 16mm - 5000 daN

100mm - 830g - 20mm - 10000 daN

120mm - 1500g - 24mm - 20000 daN

140mm - 3100g - 30mm - 40000 daN
