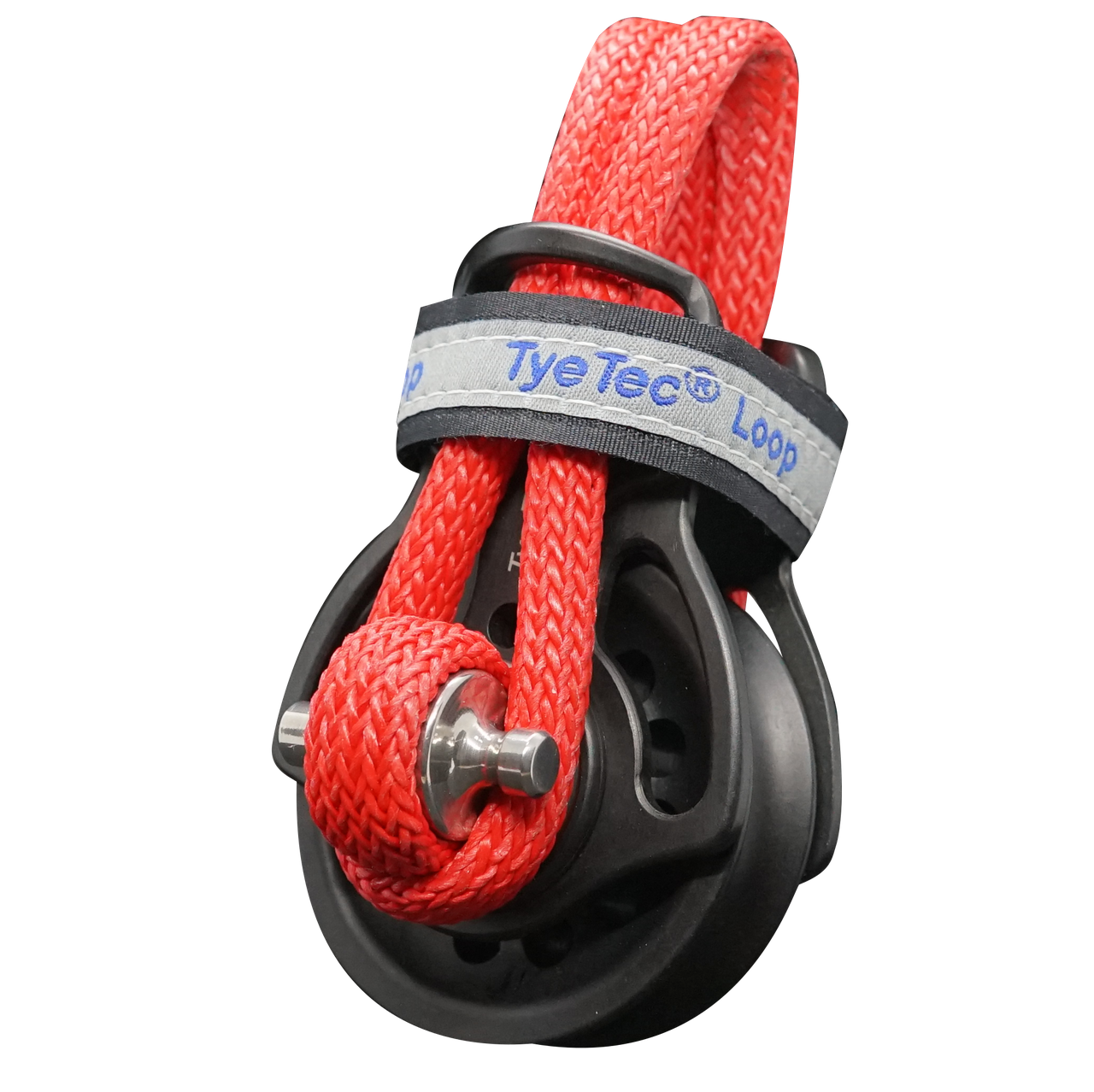

Code Red SV High Load Snatch Block

The new TyeTec block code red snatch block with high load bearings. The cheek plates can be rotated for easy rope insertion. Lightweight, strong, safe, simple to use without tools. The Velcro is not necessary when use in hanging position.

Sheave: 45mm, 60mm, 80mm, 100mm, 120mm, 140mm

Side Plates: Milled Aluminum, Hard Anodised

Central Axis: Stainless Steel 17.4

Loop: Dyneema SK99

Dogbone: Stainless Steel 1.4404

Size / Weight / Rope Size / Max Working Load

45mm - 80g - 10mm - 2700 daN

60mm - 200g - 12mm - 5000 daN

80mm - 420g - 16mm - 8500 daN

100mm - 830g - 20mm - 14500 daN

120mm - 1500g - 24mm - 29000 daN

140mm - 3100g - 30mm - 56000 daN
