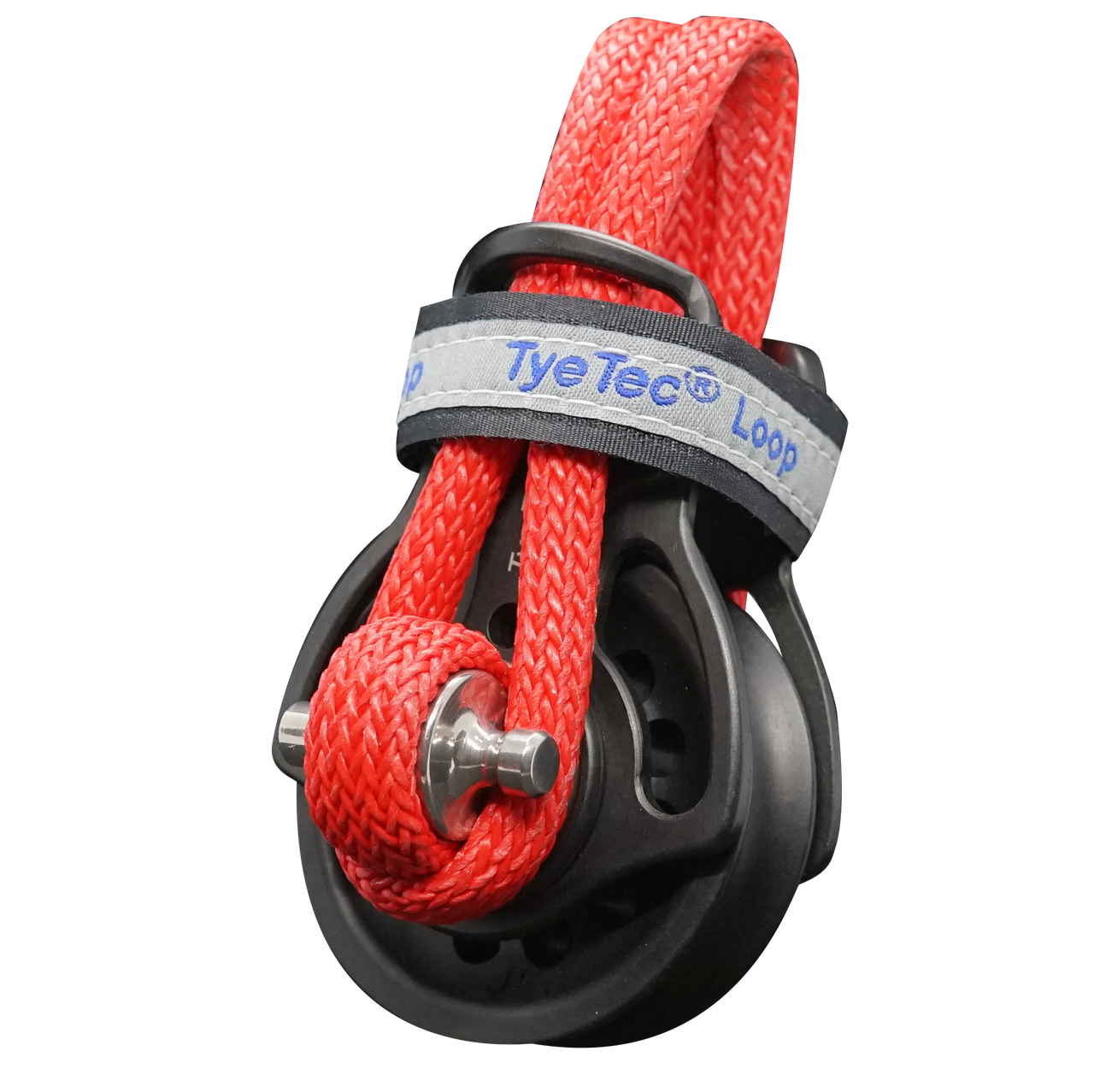

Code Red SV High Load Loop Block

The new TyeTec block, code red with high load bearings. Lightweight, strong, safe, simple to use without tools. The Velcro is not necessary when use in hanging position.

Sheave: 45mm, 60mm, 80mm, 100mm, 120mm, 140mm

Side Plates: Milled Aluminum

Central Axis: Stainless Steel 1.4404

Bearing: High Load

Loop: Dyneema SK78

Dogbone: Stainless Steel 1.4404

Size / Weight / Rope Size / Max Working Load

45mm - 80g - 10mm - 2700 daN

60mm - 200g - 12mm - 5000 daN

80mm - 420g - 16mm - 8500 daN

100mm - 830g - 20mm - 14500 daN

120mm - 1500g - 24mm - 29000 daN

140mm - 3100g - 30mm - 56000 daN
