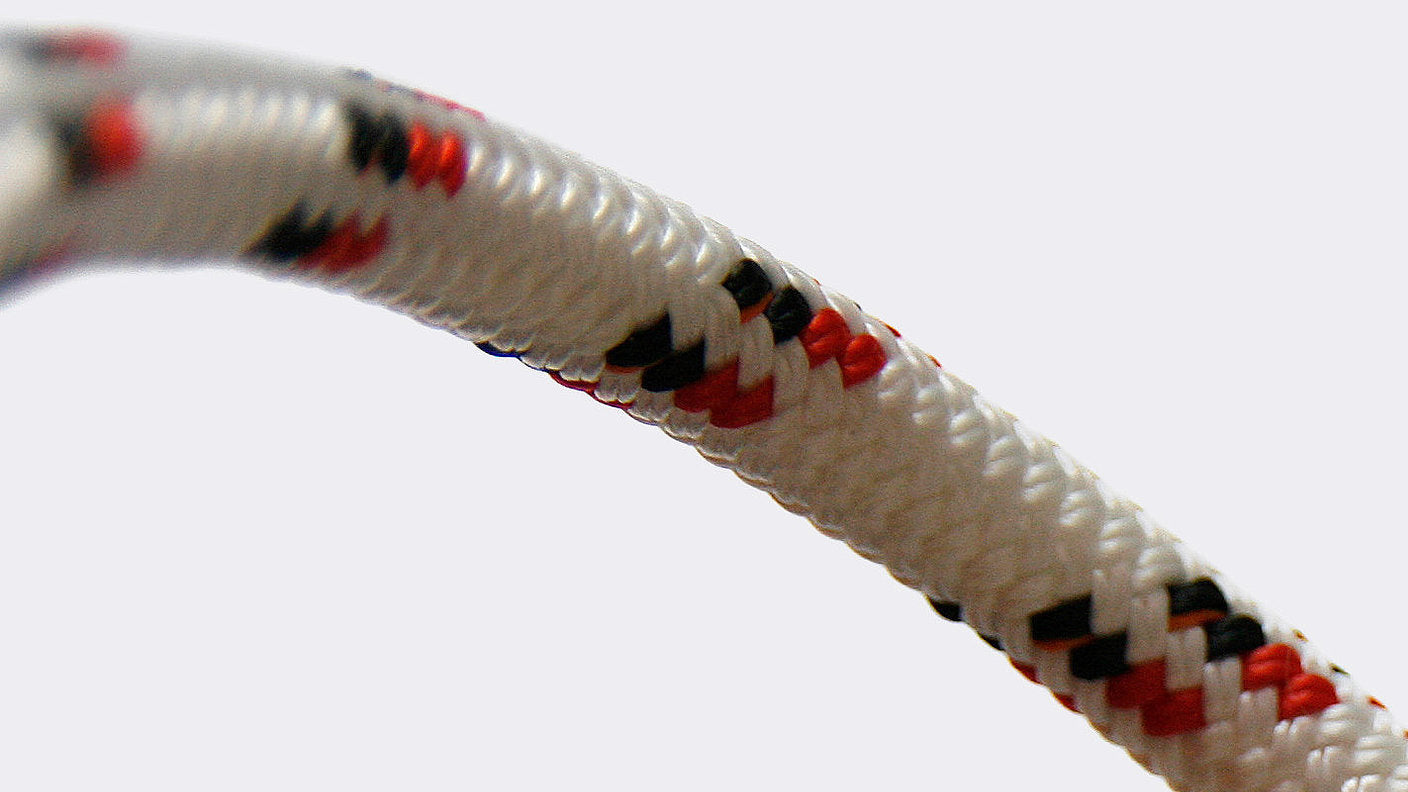

Dyneema® inside
High performance core made with Dyneema® SK 78 fibres for minimal elongation and high strength.
So inexpensive, so universal
Attractive price with optimal suitability for almost all applications on board
Perfect for cruisers
Reinforced polyester cover for safe, long-term use on conventional fittings.
Diameter: 6mm - 14mm
Cover: Polyester
Core: Dyneema SK78
Usage: Universal
Technical data
Elongation at 10% of the breaking load: 0.60 %
Ø
[mm] |
Weight
[kg/100 m] |
Bl. real
in splice
[kN] |
Bl. linear DIN
according to EN ISO 2307
[kN] |
| 6 mm Ø |
2.30 |
7.00 |
7.78 |
| 8 mm Ø |
3.80 |
16.50 |
18.33 |
| 10 mm Ø |
5.92 |
30.00 |
33.33 |
| 12 mm Ø |
8.90 |
51.00 |
56.67 |
| 14 mm Ø |
13.50 |
75.00 |
83.33 |
