Excellent shock absorption
Braided polyamide core with high elongation for comfortable mooring.

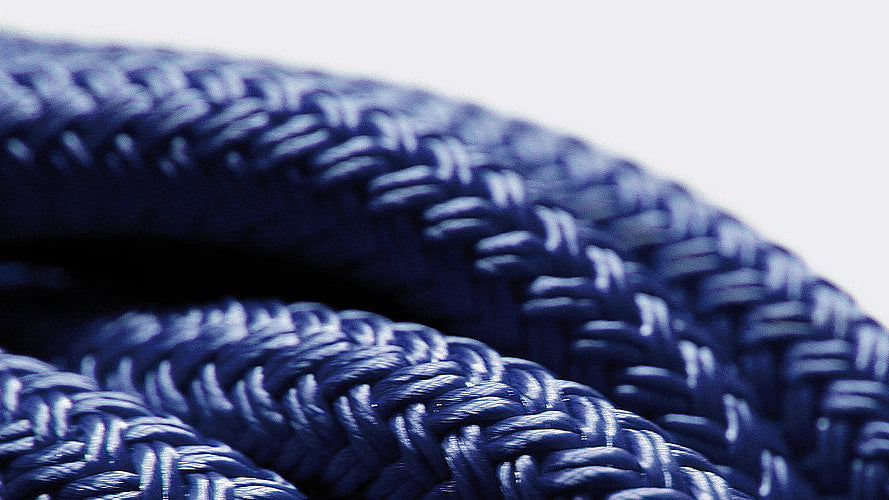

Permanently flexible
Best handling due to braided cover made of non-hardening, abrasion-resistant polyester.
High performance
The perfect interplay of the various raw materials is reflected in the high strength.
Specification
Diameter: 10mm - 20mm (Larger diameters available by request)
Cover: Polyester
Core: Polyamide
Usage: Mooring
Construction: Twin Load Sharing
Technical data
Elongation at 10% of the breaking load: 2.60 %
Ø
[mm] |
Weight
[kg/100 m] |
Bl. real
in splice
[kN] |
Bl. linear DIN
according to EN ISO 2307
[kN] |
| 10 mm Ø |
6.20 |
26.00 |
28.89 |
| 12 mm Ø |
8.80 |
38.00 |
42.22 |
| 14 mm Ø |
12.00 |
51.00 |
56.67 |
| 16 mm Ø |
15.80 |
67.00 |
74.44 |
| 18 mm Ø |
19.80 |
84.00 |
93.33 |
