Description

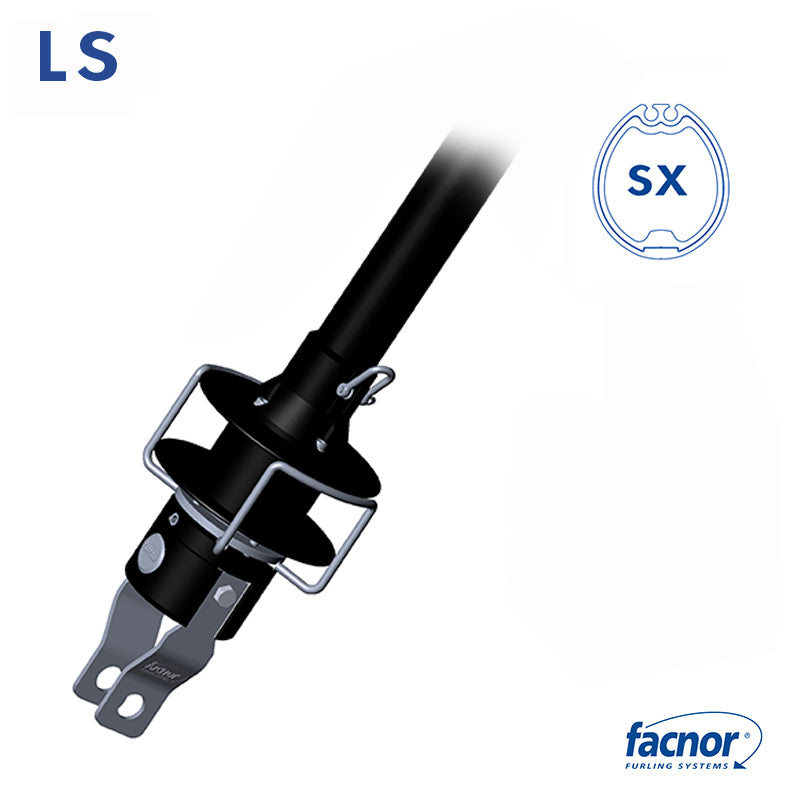

The LS Facnor model have been design for cruising. These benefits from SX rounded sections which provide good torque rigidity. LS standard headsail furlers have thus been chosen for more than 20 years by the largest shipyards.
Kit content
– The drum (+ 360° adjustable furling line guide) and a high load swivel
– 2 m sections as well as connectors number determined according to standard lengths per model
– aluminium sail feeder
– the bottom telescopic section (enables to adjust foil section length, no cutting)
– the halyard deflector wheel
– option : internal turnbuckle fitting
| MODEL |
LS60 | LS70 | LS100 | LS130 | LS165 | LS180 | LS200 | LS290 | LS330 |
|---|---|---|---|---|---|---|---|---|---|
| Boat Length |
5,5 < 7 m 18 < 23' |
6,5 < 8 m 21 < 28' |
7,5 < 9 m 24 < 29' |
8 < 11 m 26 < 36' |
9 < 12 m 29 < 40' |
10 < 13 m 40 < 43' |
11,5 < 14 m 38 < 45' |
13 < 18 m 43 < 60' |
15 < 28 m 50 < 90' |
| max forestay ø |
5 mm 5/32" |
5 mm 5/32" |
6 mm 1/4" |
6 - 7* mm 1/4" - 9/32"* |
8 - 10* mm 5/16" - 3/8"* |
8 - 10* mm 5/16" - 3/8"* |
10 - 12* mm 3/8" - 1/2"* |
12 - 14* mm 1/2" - 9/16"* |
14 - 22* mm 9/16" - 3/4"* |
| * Necessary to have removable eye or turnbuckle | |||||||||
| Section / weight (g /m) |
SX25 577 |
SX25 577 |
SX33 658 |
SX33 658 |
SX39 914 |
SX39 914 |
SX47 1095 |
SX47 1095 |
SX53 1413 |
| Halyard Swivel | C25 | C25 | C33 | C33 | C39 | C39 | C47 | C47 | C600 |
| Options | link plates/ Turnbuckle | ||||||||
