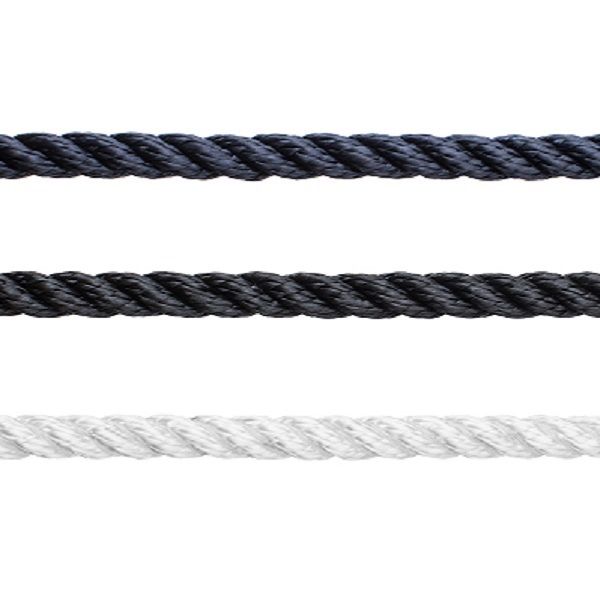

GeoTwist - Economic Mooring Line

Price per Meter

Extremely robust and durable, without hardening, best UV resistance.

Carefully constructed, high quality line at a low price.

Excellent mooring line, also suitable as anchor warp due to its sag line in water.

Specification

Diameter: 8mm - 24mm

Usage: Mooring

Construction: Twist

Core: Polyester

Technical data

Elongation at 10% of the breaking load: 4.00 %

Ø [mm]	Weight [kg/100 m]	Bl. real in splice [kN]	Bl. linear DIN according to EN ISO 2307 [kN]
8 mm Ø	4.85	11.50	12.78
10 mm Ø	7.58	18.50	20.56
12 mm Ø	10.90	30.00	33.33
14 mm Ø	14.90	39.00	43.33
16 mm Ø	19.40	50.00	55.56
18 mm Ø	24.60	64.00	71.11
20 mm Ø	30.30	84.00	93.33
22 mm Ø	36.70	98.00	108.89
24 mm Ø	43.70	115.00	127.78
