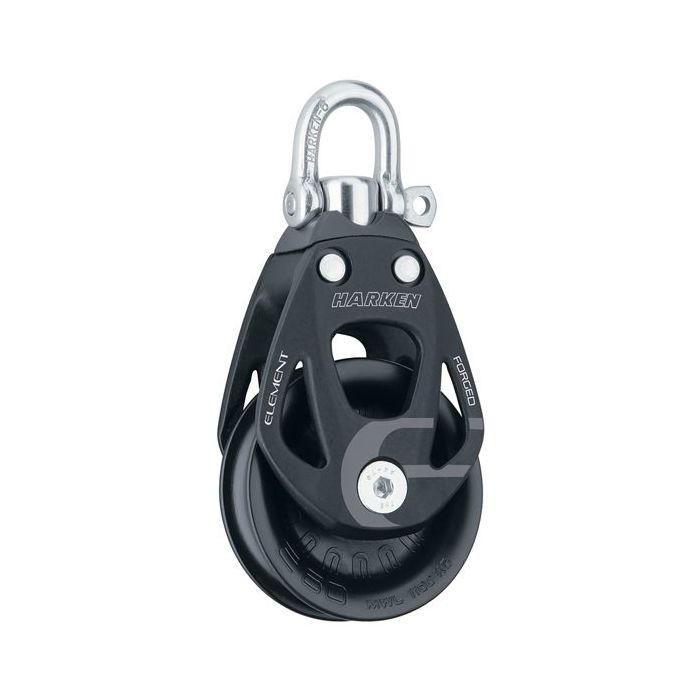

The new Element block. The name hints at its essence: everything that doesn’t contribute durability or strength is stripped away. The result is an economical block that does a Harken job.
DESCRIPTION
When Harken sets out to create a block for sailors who have always believed they didn’t need Harken, what happens? The new Element block. The name hints at its essence: everything that doesn’t contribute durability or strength is stripped away. The result is an economical block that does a Harken job.
Element blocks accept line from 8 - 16 mm. They are offered in singles, doubles, triples, fiddles, and footblocks in 45, 60 and 80 mm sizes. Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
| Series |
Element |
| Model |
60 mm |
| Sheaves Ø |
60 mm |
| Number of sheaves |
1 |
| Bearing |
Plain bearing |
| Max rope diameter |
12 mm |
| Swivel |
Yes |
| Cam |
No |
| Ratchet |
No |
| Breaking Strength (kg) |
2200 |
| Safe Working Load (kg) |
1100 |
