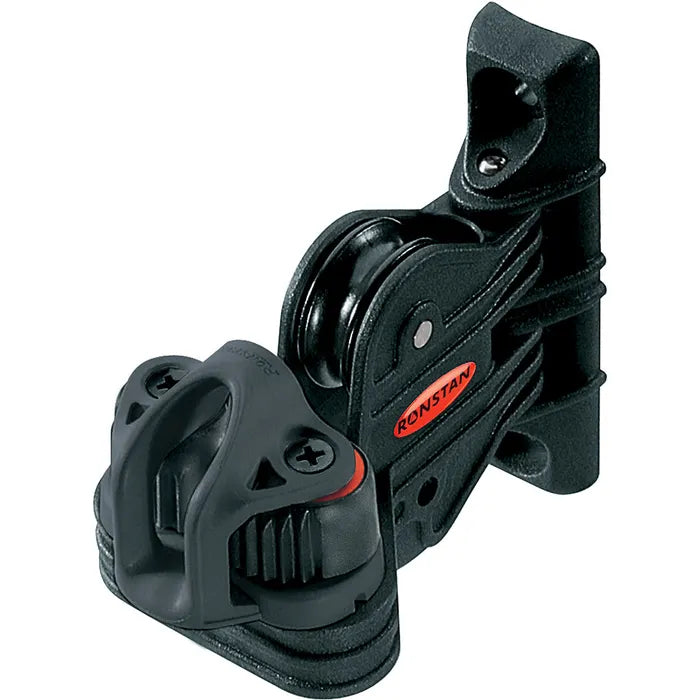

Swiveling cleat unit. 28mm (1 1/8") diameter ball bearing sheave, small C-Cleat™ and fairlead
SPECIFICATIONS
Product Specifications
| Diameter Ø (mm) |
28 |
| B.L. (kg) |
250 |
| M.W.L. (kg) |
125 |
| Weight (g) |
100 |
| Rope Ø (mm) |
2 - 8 |
Swivel cleat bases permit easy cleating and releasing from any angle.
Manufactured in lightweight fibre reinforced composite materials - the position of the sheave can be changed for control line led from below.
Comes complete with a 28mm (1 1/4") ball bearing sheave, small ‘T-Cleat™’ and the ‘Fast Track’ fairlead. Fastenings 2 x 5mm (3/16").
* Load ratings are for the cleat base assembly and are based upon a 90º change in line direction. Line load should be limited to: MWL 125kg (275lb).
