Sta-Lok Bronze Stemball & Swage

Roll over image to zoom in Click on image to zoom

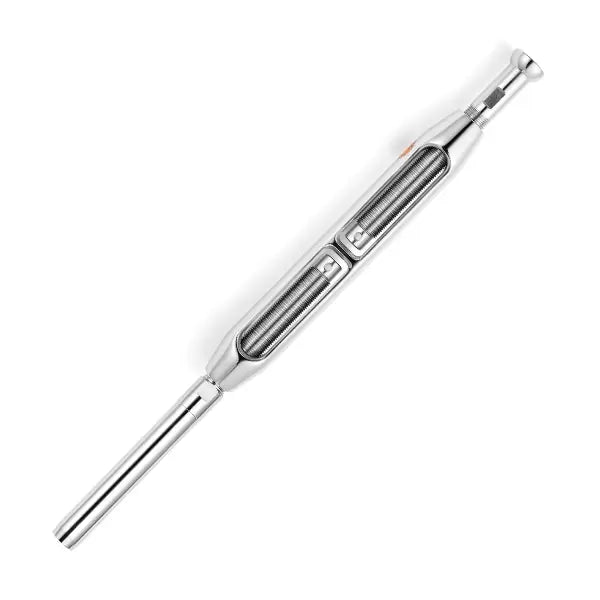

Bronze Turnbuckle assembly, supplied with a Threaded Stemball (186) at one end and a Swage Stud (051) at the other
Forged from high strength bronze alloy
High quality polished chromium finish
Stronger than the wire rope
If Stemball Cups are required, please refer to product (042C)

*Warning – Always check Tip Cup and Spreader dimensions for correct head sizing. Stemball Cups may be required.

SKU	Wire Size (Metric)	Wire Size (Imperial)	Thread (UNF)	Fully Open (MM)	Fully Closed (MM)	Fully Open (INCH)	Fully Closed (INCH)	C (MM)	C (INCH)
B54-03	3 MM	1/8"	1/4"	235.0	159.0	9.252	6.260	14.6	0.574
B54-144	4 MM	5/32"	1/4"	241.0	165.0	9.488	6.496	14.6	0.574
B54-04Z	4 MM	5/32"	5/16"	255.0	172.0	10.039	6.772	13.2	0.520
B54-04	4 MM	5/32"	5/16"	255.0	172.0	10.039	6.772	18.0	0.709
B54-5165Z	5 MM	3/16"	5/16"	257.0	174.0	10.118	6.850	13.2	0.520
B54-5165	5 MM	3/16"	5/16"	257.0	174.0	10.118	6.850	18.0	0.709
B54-05SC	5 MM	3/16"	3/8"	290.0	198.0	11.417	7.795	18.3	0.720
B54-05	5 MM	3/16"	3/8"	290.0	198.0	11.417	7.795	20.3	0.799
B54-386SC	6 MM	-	3/8"	288.0	196.0	11.339	7.717	18.3	0.720
B54-386	6 MM	-	3/8"	288.0	196.0	11.339	7.717	20.3	0.799
B54-06SC	6 MM	-	7/16"	315.0	215.0	12.402	8.465	18.3	0.720
B54-06	6 MM	-	7/16"	315.0	215.0	12.402	8.465	20.3	0.799
B54-7167SC	7 MM	9/32"	7/16"	322.0	222.0	12.677	8.740	18.3	0.720
B54-7167	7 MM	9/32"	7/16"	322.0	222.0	12.677	8.740	20.3	0.799
B54-07	7 MM	9/32"	1/2"	339.0	235.0	13.346	9.252	26.0	1.024
B54-07SC	7 MM	9/32"	1/2"	339.0	235.0	13.346	9.252	26.3	1.035
B54-08	8 MM	5/16"	1/2"	338.0	234.0	13.307	9.213	26.0	1.024
B54-08SC	8 MM	5/16"	1/2"	338.0	234.0	13.307	9.213	26.3	1.035
B54-588SC	8 MM	5/16"	5/8"	397.0	271.0	15.630	10.669	26.3	1.035
B54-588	8 MM	5/16"	5/8"	397.0	271.0	15.630	10.669	27.0	1.063
B54-10SC	10 MM	-	5/8"	405.0	279.0	15.945	10.984	26.3	1.035
B54-10	10 MM	-	5/8"	405.0	279.0	15.945	10.984	27.0	1.063
B54-12	12 MM	-	3/4"	512.0	348.0	20.157	13.701	28.0	1.102
