- Sta-Lok Self-Fit Terminal, the reusable alternative to swage
- Enables replacement of swages without having to replace the wire rope
- Only basic hand tools required
- Quick and easy to install
- No pre-measurement needed
- Guaranteed stronger than wire rope
- For right hand and left hand lay wire rope
- Packed for 1×19 wire as standard
- Manufactured from high specification 316 stainless steel
- Supplied with split pin
- Right hand thread only
Designed for Quick Repairs and Reliable Terminations

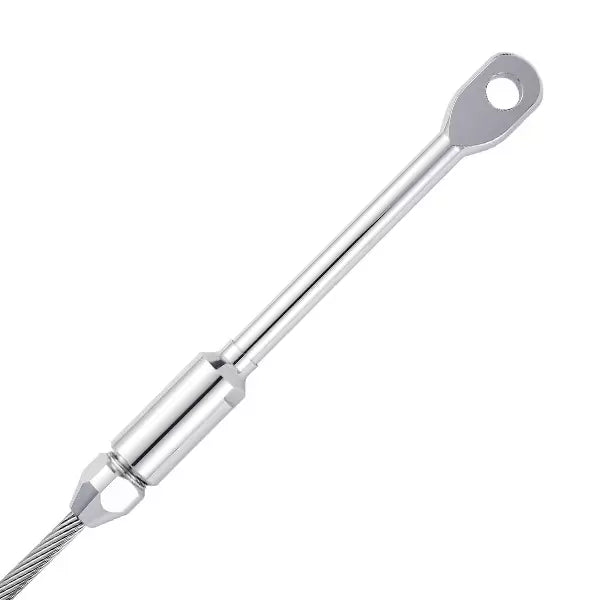

The Sta-Lok Long Eye is a proven, reusable alternative to swage terminals, ideal for sailors, marine engineers, riggers, and industrial professionals requiring a strong and corrosion-resistant fitting for wire rope assemblies.
Engineered for Emergency Repairs and Easy Installation
Manufactured from high-strength 316 stainless steel for exceptional corrosion resistance, the Sta-Lok Long Eye is guaranteed to be stronger than the wire rope itself. The additional length allows for the straightforward replacement of damaged fittings without the need to replace the entire wire, making it an essential solution for emergency rigging repairs. Installation is quick and easy using only basic hand tools, with no pre-measurement required, and can be completed onsite or onboard. Supplied as standard for 1×19 wire rope, with separate wedges available for 7×7, 7×19, and compacted strand constructions.
Built for Long-Term Performance Across Demanding Applications
Suitable for both right-hand and left-hand lay wire ropes, the Sta-Lok Long Eye performs reliably under constant load and variable shock conditions. Common applications include standing rigging on yachts, emergency rigging repairs, and structural cable systems where durability and strength are critical.
Refer to the technical chart for full dimensional details.
| SKU |
Wire Size (Metric) |
Wire Size (Imperial) |
A (MM) |
A (INCH) |
B (MM) |
B (INCH) |
D (MM) |
D (INCH) |
H (MM) |
H (INCH) |
Weight (KG) |
Weight (LB) |
| 078-05 |
5 MM |
- |
106.0 |
4.187 |
82.5 |
3.250 |
7.5 |
0.295 |
9.8 |
3/8" |
0.120 |
0.265 |
| 178-05 |
- |
3/16" |
106.0 |
4.187 |
82.5 |
3.250 |
7.5 |
0.295 |
9.8 |
3/8" |
0.120 |
0.265 |
| 178-55-3/8 |
- |
7/32" |
126.0 |
4.875 |
100.0 |
3.937 |
7.5 |
0.295 |
9.8 |
3/8" |
0.200 |
0.441 |
| 178-55 |
- |
7/32" |
126.0 |
4.875 |
100.0 |
3.937 |
9.5 |
0.375 |
11.5 |
7/16" |
0.200 |
0.441 |
| 078-06-3/8 |
6 MM |
- |
126.0 |
4.875 |
100.0 |
3.937 |
7.5 |
0.295 |
9.8 |
3/8" |
0.200 |
0.441 |
| 078-06 |
6 MM |
- |
126.0 |
4.875 |
100.0 |
3.937 |
9.5 |
0.375 |
11.5 |
7/16" |
0.200 |
0.441 |
| 078-06-1/2 |
6 MM |
- |
147.0 |
5.750 |
117.5 |
4.625 |
12.0 |
0.472 |
13.0 |
1/2" |
0.260 |
0.573 |
| 178-06-3/8 |
- |
1/4" |
126.0 |
4.875 |
100.0 |
3.937 |
7.5 |
0.295 |
9.8 |
3/8" |
0.200 |
0.441 |
| 178-06 |
- |
1/4" |
147.0 |
5.750 |
117.5 |
4.625 |
12.0 |
0.472 |
13.0 |
1/2" |
0.260 |
0.573 |
| 078-07 |
7 MM |
9/32" |
147.0 |
5.781 |
117.5 |
4.625 |
12.0 |
0.472 |
13.0 |
1/2" |
0.300 |
0.661 |
| 078-08 |
8 MM |
5/16" |
147.0 |
5.781 |
117.5 |
4.625 |
12.0 |
0.472 |
13.0 |
1/2" |
0.360 |
0.794 |
| 078-08-5/8 |
8 MM |
5/16" |
175.0 |
6.889 |
136.4 |
5.369 |
13.5 |
0.531 |
16.0 |
5/8" |
0.540 |
1.190 |
| 078-10 |
10 MM |
- |
175.0 |
6.889 |
136.4 |
5.369 |
13.5 |
0.531 |
16.0 |
5/8" |
0.640 |
1.411 |
| 178-10 |
- |
3/8" |
175.0 |
6.889 |
136.4 |
5.369 |
13.5 |
0.531 |
16.0 |
5/8" |
0.640 |
1.411 |
| 178-11 |
- |
7/16" |
254.0 |
10.000 |
205.8 |
8.102 |
19.0 |
0.748 |
19.5 |
3/4" |
1.300 |
2.866 |
| 078-12 |
12 MM |
- |
254.0 |
10.000 |
205.8 |
8.102 |
19.0 |
0.748 |
19.5 |
3/4" |
1.300 |
2.866 |
| 178-12 |
- |
1/2" |
254.0 |
10.000 |
205.8 |
8.102 |
19.0 |
0.748 |
19.5 |
3/4" |
1.300 |
2.866 |
| 078-14 |
14 MM |
9/16" |
330.0 |
13.000 |
280.5 |
11.000 |
21.0 |
0.827 |
22.5 |
7/8" |
2.100 |
4.630 |
| 078-16 |
16 MM |
5/8" |
320.0 |
12.600 |
303.6 |
11.955 |
24.0 |
0.945 |
25.6 |
1" |
2.700 |
5.952 |
