- Joins 2 pieces of wire rope
- Quick and easy to install
- Only basic hand tools required
- Manufactured from high specification 316 stainless steel
- For right hand and left hand lay wire rope
- Packed for 1×19 wire as standard
- Different wedges are available to terminate 7 strand & compacted strand wire ropes
Designed for Joining Wire Rope Quickly and Securely

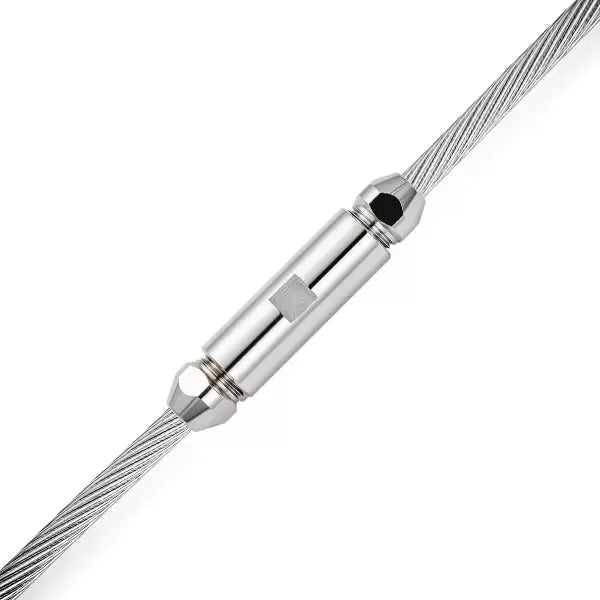

The Sta-Lok Stay Connector provides a simple, reliable solution for sailors, riggers, marine engineers, and industrial professionals needing to join two pieces of wire rope without specialist equipment.
Engineered for Strength, Corrosion Resistance, and Easy Installation
Manufactured from high-specification 316 stainless steel, the Sta-Lok Stay Connector offers outstanding corrosion resistance and is designed to be stronger than the wire rope itself. Quick and easy to install using basic hand tools, it requires no pre-measurement, making it ideal for onboard or onsite assembly. Supplied as standard for 1×19 wire rope, with separate wedges available for 7×7, 7×19, and Compacted strand constructions. Suitable for both right-hand and left-hand lay wire ropes.
Built for Emergency Repairs and Long-Term Applications
Available for wire sizes from 4mm to 12mm and 5/32″ to 1/2″, the Sta-Lok Stay Connector is an essential solution for emergency rigging repairs and long-term installations. Designed for dependable performance across marine, architectural, and industrial environments.

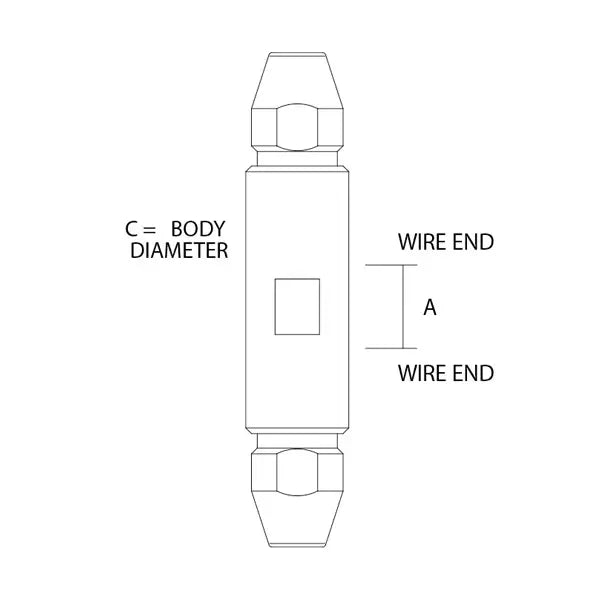

Refer to the technical chart for full dimensional details.
| SKU |
Wire Size (Metric) |
Wire Size (Imperial) |
A (MM) |
A (INCH) |
C (MM) |
C (INCH) |
Weight (KG) |
Weight (LB) |
| 072-04 |
4 MM |
5/32" |
11.1 |
0.437 |
14.3 |
0.562 |
0.060 |
0.132 |
| 072-05 |
5 MM |
- |
14.3 |
0.563 |
15.9 |
0.625 |
0.080 |
0.176 |
| 172-05 |
- |
3/16" |
14.3 |
0.563 |
15.9 |
0.625 |
0.080 |
0.176 |
| 172-55 |
- |
7/32" |
20.6 |
0.812 |
19.1 |
0.750 |
0.160 |
0.353 |
| 072-06 |
6 MM |
- |
20.6 |
0.812 |
19.1 |
0.750 |
0.160 |
0.353 |
| 172-06 |
- |
1/4" |
20.6 |
0.812 |
19.1 |
0.750 |
0.160 |
0.353 |
| 072-07 |
7 MM |
9/32" |
19.1 |
0.750 |
22.2 |
0.875 |
0.240 |
0.529 |
| 072-08 |
8 MM |
5/16" |
19.1 |
0.750 |
25.4 |
1.000 |
0.300 |
0.661 |
| 072-10 |
10 MM |
- |
24.0 |
0.937 |
28.6 |
1.125 |
0.420 |
0.926 |
| 172-10 |
- |
3/8" |
24.0 |
0.937 |
28.6 |
1.125 |
0.420 |
0.926 |
| 172-11 |
- |
7/16" |
25.4 |
1.000 |
34.9 |
1.375 |
0.900 |
1.984 |
| 072-12 |
12 MM |
- |
25.4 |
1.000 |
34.9 |
1.375 |
0.900 |
1.984 |
| 172-12 |
- |
1/2" |
25.4 |
1.000 |
34.9 |
1.375 |
0.900 |
1.984 |
