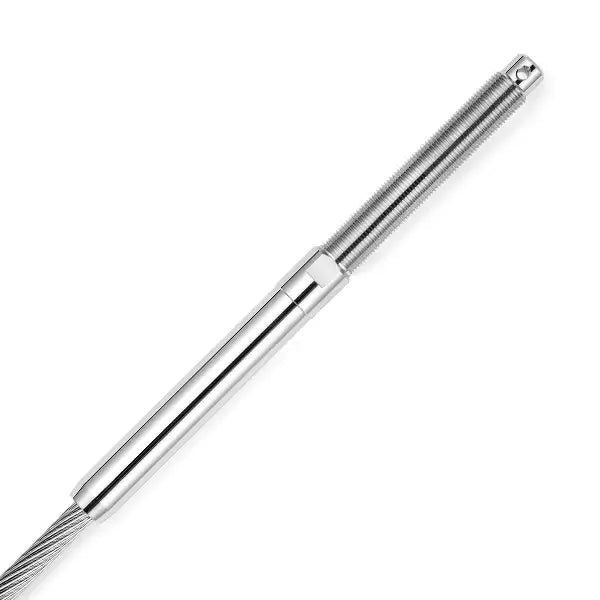

Sta-Lok Swage Stud Open Body

Roll over image to zoom in Click on image to zoom

Suitable for use with rotary & fixed die swaging machines
Manufactured from high specification 316 stainless steel
Use with 1×19, 7 Strand and compacted stand wire rope (IWRC)
Metric and Inch wire ropes
Minimum hole depth 10x wire diameter
Use with open and closed body turnbuckles
Right hand thread only
Supplied with split pin
Caution – When using compacted strand wire ropes, it is not suitable to use down-sized thread options.

SKU	Wire Size (Metric)	Wire Size (Imperial)	Thread (UNF)	A (MM)	A (INCH)	B (MM)	B (INCH)	Weight (KG)	Weight (LB)
051-03	3 MM	1/8"	1/4"	6.2	0.245	56.0	2.204	0.020	0.044
051-04-1/4	4 MM	5/32"	1/4"	7.4	0.292	56.0	2.204	0.020	0.044
051-04	4 MM	5/32"	5/16"	7.4	0.292	60.0	2.362	0.040	0.088
051-05-5/16	5 MM	3/16"	5/16"	9.0	0.354	60.0	2.362	0.040	0.088
051-05	5 MM	3/16"	3/8"	9.0	0.354	67.0	2.625	0.060	0.132
151-55	-	7/32"	3/8"	10.7	0.422	67.0	2.625	0.070	0.154
151-55-7/16	-	7/32"	7/16"	10.7	0.422	75.0	2.953	0.080	0.176
051-06-3/8	6 MM	-	3/8"	12.4	0.489	67.0	2.625	0.080	0.176
051-06	6 MM	-	7/16"	12.4	0.489	75.0	2.953	0.100	0.220
151-06-3/8	-	1/4"	3/8"	12.5	0.494	67.0	2.625	0.100	0.220
151-06	-	1/4"	7/16"	12.5	0.494	75.0	2.953	0.100	0.220
151-06-1/2	-	1/4"	1/2"	12.5	0.494	81.0	3.187	0.140	0.309
051-07-7/16	7 MM	9/32"	7/16"	14.2	0.558	75.0	2.953	0.140	0.309
051-07	7 MM	9/32"	1/2"	14.2	0.558	81.0	3.187	0.160	0.353
051-08	8 MM	5/16"	1/2"	16.1	0.630	81.0	3.187	0.180	0.397
051-08-5/8	8 MM	5/16"	5/8"	16.1	0.630	100.0	3.937	0.260	0.573
051-10	10 MM	-	5/8"	17.7	0.698	100.0	3.937	0.300	0.661
151-10	-	3/8"	5/8"	17.7	0.698	100.0	3.937	0.300	0.661
151-11	-	7/16"	3/4"	19.6	0.776	124.0	4.875	0.540	1.190
051-12	12 MM	-	3/4"	21.3	0.839	124.0	4.875	0.540	1.190
051-12-7/8	12 MM	-	7/8"	21.3	0.839	140.0	5.511	0.680	1.499
151-12	-	1/2"	3/4"	21.3	0.839	124.0	4.875	0.540	1.190
051-14	14 MM	9/16"	7/8"	24.9	0.979	140.0	5.511	0.900	1.984
051-16	16 MM	5/8"	1"	28.0	1.104	162.0	6.375	1.260	2.778
051-19	19 MM	3/4"	1 1/8"	34.4	1.354	184.0	7.250	2.100	4.630
051-22	22 MM	7/8"	1 1/4"	40.3	1.588	215.0	8.464	3.220	7.099
051-26	26 MM	1"	1 3/8"	45.8	1.807	220.0	8.656	4.000	8.818
