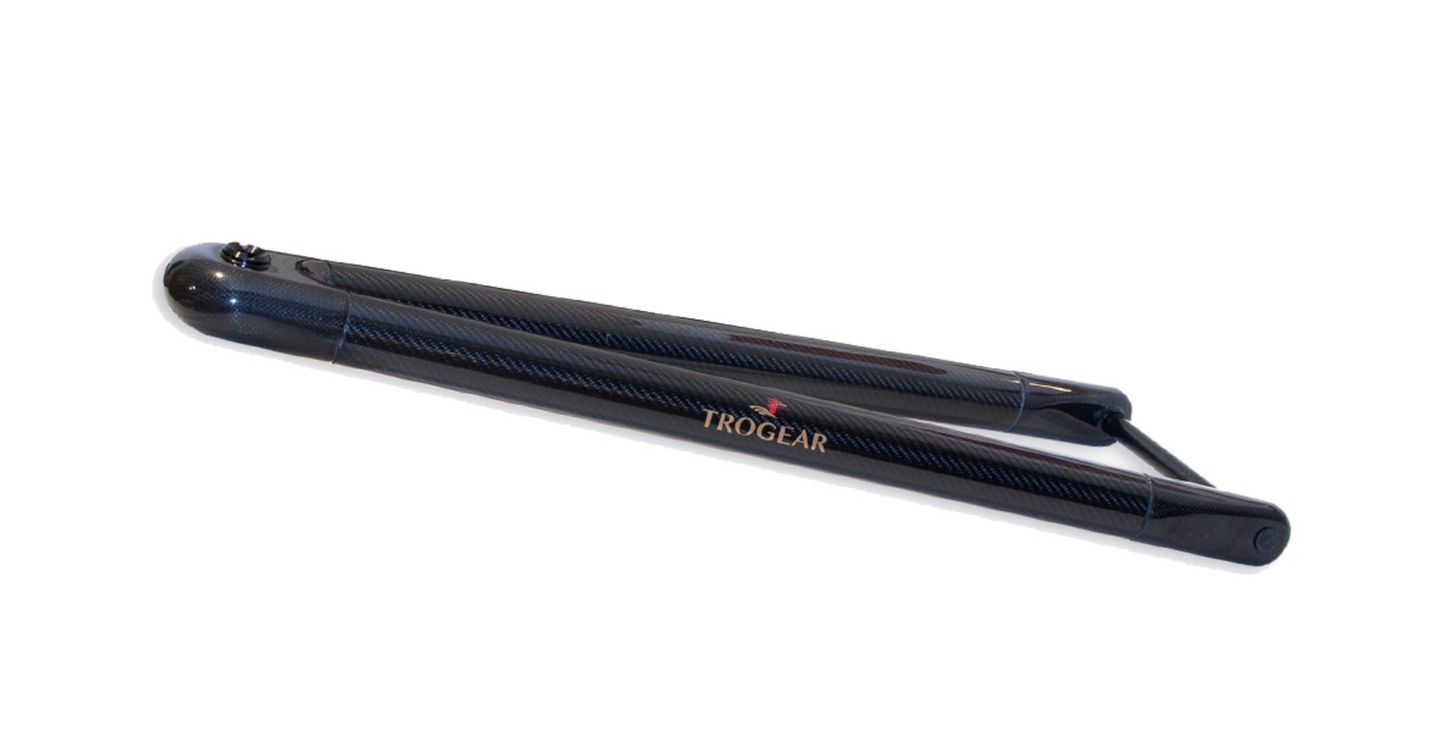

Suitable for sailboats up to 8m (25 ft).
Bowsprit base model includes parts needed for Through Hull install:
- G10 fiberglass hinge tube
- Aluminum 6061, black anodized shaft w/bolts
- Marine grade bolts and washers
- Quick release adapter optional (+ $780)
| Length: |
85cm (33.5″)
|
| Weight: |
1.1kg (2.25 lbs)
|
| Extension past bow: |
~61cm (24″)
|
| Inside width at hinge: |
22.4cm (8.8″)
|
| Shaft material: |
Aluminum 6061, anodized
|
| Max Asymmetrical Spinnaker: |
70m2 (750ft2)
|
| Max Code 0: |
58m2 (600ft2)
|
| *SWL: |
700kg (1500lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit.
|
Allow 2-3 weeks for delivery
Contact us for installation options
