Suited for sailboats 11m (35′).

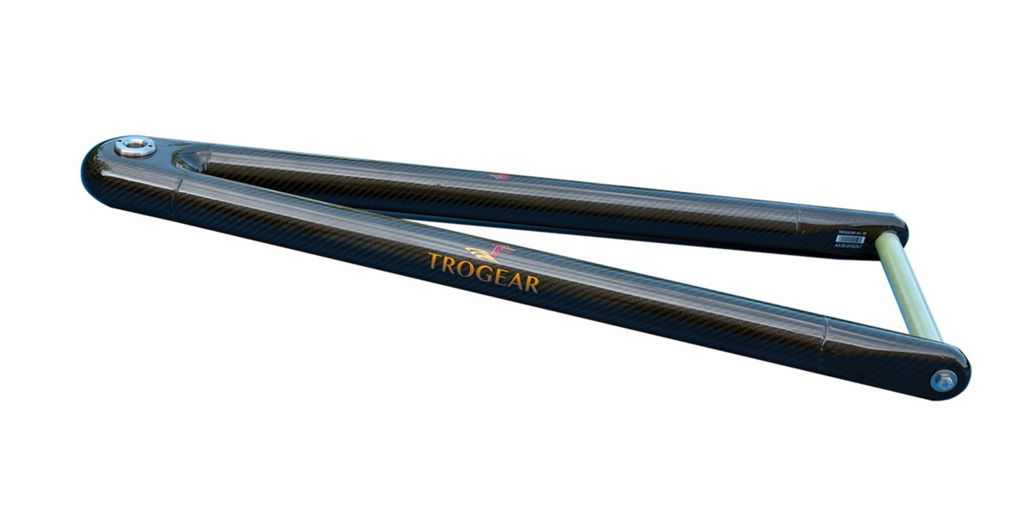

Bowsprit base model includes parts needed for Through Hull install:
- G10 fiberglass hinge tube
- Hinge shaft: Titanium w/bolts or quick release pin
- Marine grade bolts and washers
-Does not include parts for the bobstay rigging.
-Quick Release Adapter optional upgrade (+ $780)
| Length: |
85cm (33.5″)
|
| Weight: |
1.25kg (2.75 lbs)
|
| Extension past bow: |
~61cm (~24″)
|
| Inside width at hinge: |
22.4cm (8.8″)
|
| Shaft material: |
Titanium
|
| Bushing: |
Titanium
|
| Max Asymmetrical Spinnaker: |
100m2 (1075 ft2)
|
| Max Code 0: |
80m2 (840 ft2)
|
| *SWL: |
1000kg (2200 lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit.
|
Allow 2-3 weeks for delivery
Contact us for installation options
