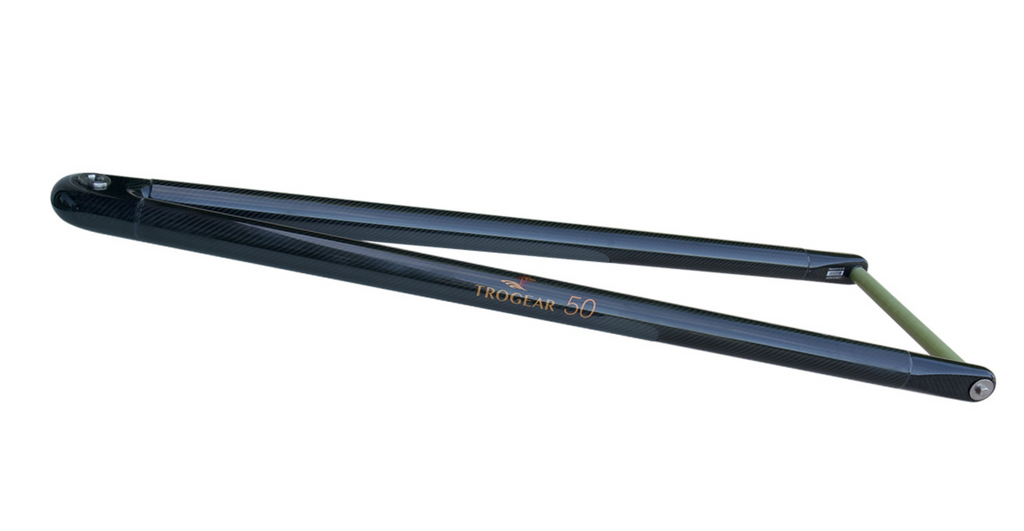

Trogear AS-50 Carbon Bowsprit | For Yachts up to 13m / 45'
Trogear AS-50 Carbon Bowsprit | For Yachts up to 13m / 45'
Regular price
HK$24,190.00
Regular price
Sale price
HK$24,190.00
Unit price
/
per
Couldn't load pickup availability
Suited for racers with boats up to 13m (45′).
- 3-year warranty.
Bowsprit base model includes parts needed for Through Hull install:
- G10 Fiberglass hinge tube
- Hinge shaft: Titanium w/bolts or quick release pin
- Marine grade bolts and washers
-Does not include parts for the bobstay rigging.
-Quick Release Adapter optional upgrade (+ $980)
| Length: |
126cm (50″) |
|---|---|
| Weight: |
2.6 kg (5.7 lbs) |
| Extension past bow: |
91.5cm (~36) |
| Inside width at hinge: |
32.7cm (12.9) |
| Shaft material: |
Titanium |
| Bushing: |
Titanium |
| Max Asymmetrical Spinnaker: |
120m2 (1300ft2) |
| Max Code 0: |
100m2 (1075ft2) |
| *SWL: |
1200kg (2750 lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit. |
Allow 2-3 weeks for delivery
Contact us for installation options
