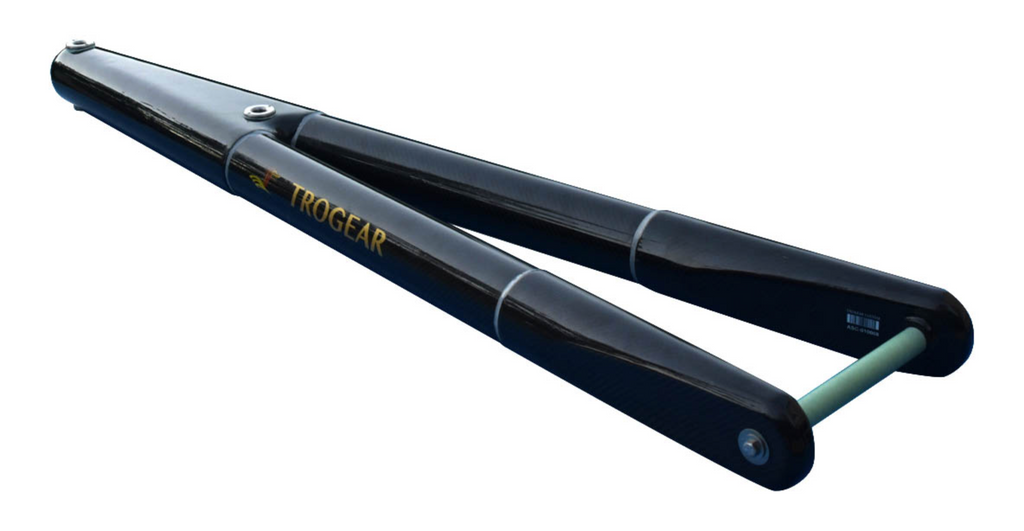

Trogear ATLAS 500 Carbon Bowsprit | For Yachts up to 16m / 50ft
Trogear ATLAS 500 Carbon Bowsprit | For Yachts up to 16m / 50ft
Regular price
HK$34,190.00
Regular price
Sale price
HK$34,190.00
Unit price
/
per
Couldn't load pickup availability
Suited for yachts up to 16m (~50ft)
- Custom length available. Please inquire.
- Second Tack Bushing (more aft) optional (+ $1100)
- 3-year warranty.
Bowsprit base model includes parts needed for Through Hull install:
- G10 Fiberglass hinge tube
- Hinge shaft: Titanium or carbon fibre and SS w/bolts
- Marine grade bolts and washers
Does not include parts for the bobstay rigging.
| Length: |
129cm (50.8″ ) |
|---|---|
| Weight: |
3.6kg (7.9 lbs) |
| Extension past bow: |
~115cm (45″) |
| Inside width at hinge: |
20cm (7.8″) |
| Shaft material: |
Titanium or carbon fibre w/bolts |
| Bushing: |
Titanium |
| Max Asymmetrical Spinnaker: |
200m2 (2150ft2) |
| Max Code 0: |
160m2 (1680ft2) |
| *SWL: |
2000 kg (4400 lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit. |
Allow 2-3 Weeks for delivery
Contact us for installation options
