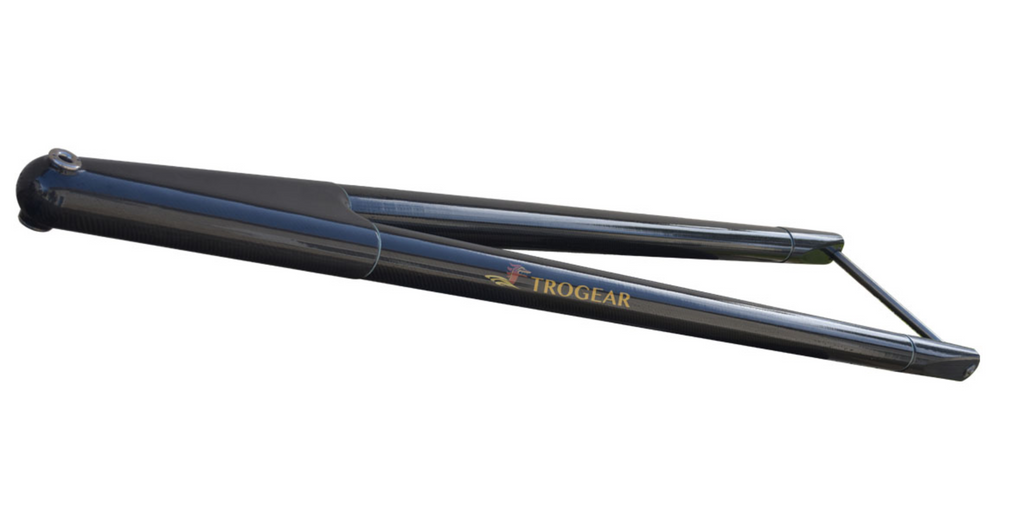

Trogear MAXI Carbon Bowsprit | For Yachts from 16m / 50ft up to 21.5m / 70ft
Trogear MAXI Carbon Bowsprit | For Yachts from 16m / 50ft up to 21.5m / 70ft
Regular price
HK$45,490.00
Regular price
Sale price
HK$45,490.00
Unit price
/
per
Couldn't load pickup availability
Suited for yachts over 16m up to 21.5m (50ft. up to 70ft)
- Length per customer specs.
- 3-year warranty.
Bowsprit base model includes parts needed for Through Hull install:
- G10 Fiberglass hinge tube
- Hinge shaft: Titanium or carbon fibre w/bolts
- Marine grade bolts and washers
Does not include parts for the bobstay rigging.
| Length: |
Per customer spec: up to 227cm (89″) |
|---|---|
| Weight: |
11kg (24.25 lbs) |
| Extension past bow: |
Per customer spec: up to ~200cm (78″) |
| Inside width at hinge: |
Depends on final length. See drawing for examples. |
| Shaft material: |
Titanium or carbon fibre w/bolts |
| Bushing: |
Titanium |
| MAX Asymmetrical Spinnaker: |
250m2 (2700 ft2) |
| MAX Code 0: |
200m2 (2160 ft2) |
| *SWL: |
2500kg (5500 lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit. |
Allow 2-3 weeks for delivery.
Contact us for installation options
As used on the following boats.
- Farr 40
- J 44
- Jeaneau 53
- Open 50
- Oyster 625
- Oyster 725
- Soubise 50 CAT
