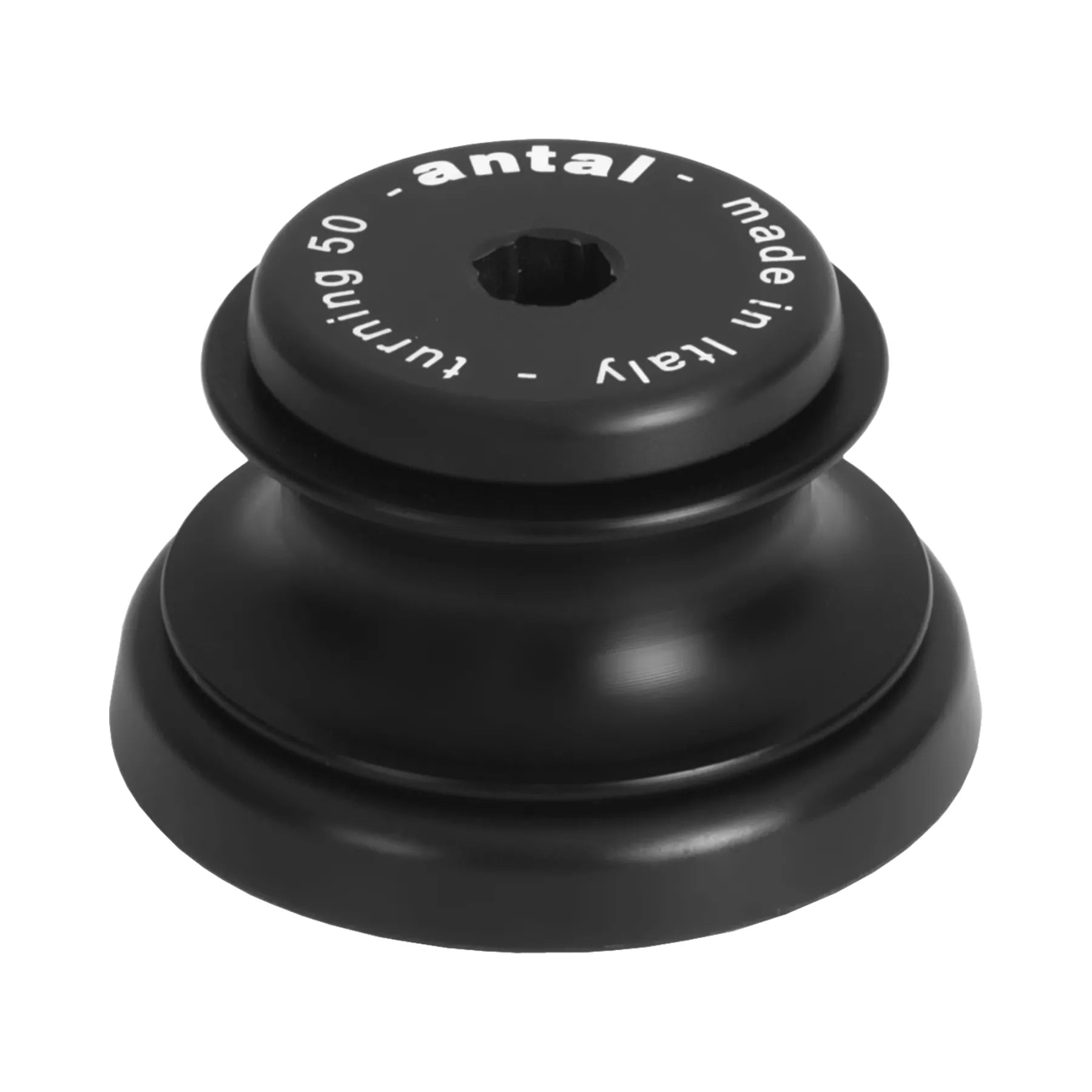

Mounted aft of a set of rope clutches, the turning sheave redirects each line to the most suitable winch. Mounting screws, nuts and washers are included.
Material: Aluminum
Sheave material: Resin
Side bearing: Delrin Balls
Radial bearing: Composite Fibre
Sheave Ø 50mm, SWL 800 kg, Dimensions 57mm x 33mm, Max Line Ø 10mm
Sheave Ø 60mm, SWL 1200 kg, Dimensions 67mm x 38mm, Max Line Ø 12mm
Sheave Ø 70mm, SWL 1800kg, Dimensions 83mm x 44mm, Max Line Ø 14mm
