Description
The 20mm sheave Size 0 block range is available in plain and ball bearing assembly. Engineered for dinghy sailors and small craft enthusiasts, the series defines high strength, keen performance and lightweight design for racing and day boats. Also ideal for lead blocks, flag pennants and small line systems on larger yachts.

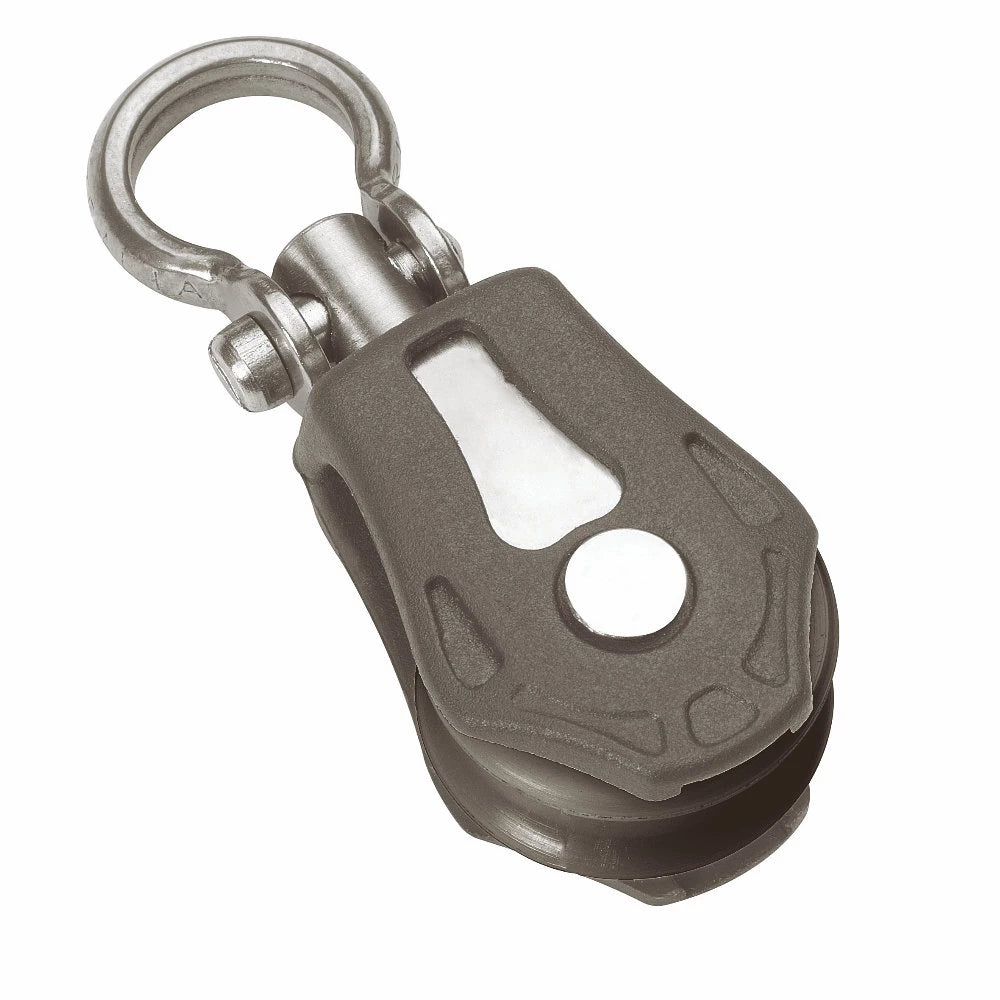

The Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. Designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).
Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats and smaller craft or lead blocks, flag pennants etc. on larger yachts
Additional information
| WEIGHT |
24 g |
| DIMENSIONS |
55 × 24 × 16 mm |
| SIZE |
0 (20MM)
|
| BLOCK TYPE |
Swivel
|
| NO. OF SHEAVES |
Single
|
| BEARING TYPE |
Plain
|
| SHEAVE SIZE |
20mm x 8mm (25/32" x 5/16")
|
| MAX ROPE DIAMETER |
6mm (1/4")
|
| SWL |
275kg (606lbs)
|
| BREAK LOAD |
550kg (1210lbs)
|
| MAX ROLLING LOAD (BALL BEARING BLOCKS) |
130kg (286lbs)
|
| BRAND |
Barton
|
