Bronze Toggle & Sta-Lok

Roll over image to zoom in Click on image to zoom

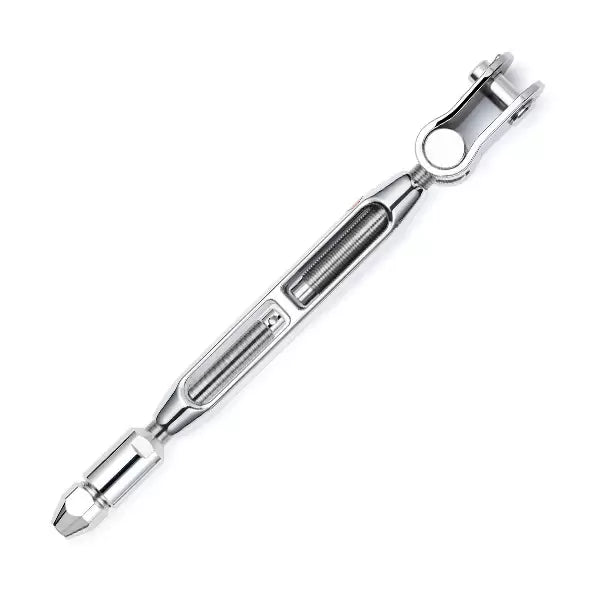

Elegant Bronze Turnbuckle assembly, supplied with a Threaded Strap Toggle (B18) at one end and a reusable Sta-Lok Self-Fit Stud (036) at the other
Forged from high strength bronze alloy
High quality polished chromium finish
Stronger than the wire rope
Toggle action gives full articulation in two planes

SKU	Wire Size (Metric)	Wire Size (Imperial)	Thread (UNF)	Fully Open (MM)	Fully Closed (MM)	Fully Open (INCH)	Fully Closed (INCH)	Toggle Width (MM)	Toggle Width (INCH)	Toggle Pin (MM)	Toggle Pin (INCH)
B22-03	3 MM	1/8"	1/4"	231.0	155.0	9.094	6.102	6.4	0.252	6.4	1/4"
B22-144	4 MM	5/32"	1/4"	231.0	155.0	9.094	6.102	6.4	0.252	6.5	1/4"
B22-04	4 MM	5/32"	5/16"	252.0	169.0	9.921	6.654	8.4	0.331	7.9	5/16"
B22-5165	5 MM	-	5/16"	254.0	171.0	10.000	6.732	8.4	0.331	7.9	5/16"
B22-05	5 MM	-	3/8"	282.0	190.0	11.102	7.480	9.9	0.390	9.5	3/8"
B23-5165	-	3/16"	5/16"	249.5	166.5	9.823	6.555	8.4	0.331	7.9	5/16"
B23-05	-	3/16"	3/8"	282.0	190.0	11.102	7.480	9.9	0.390	9.5	3/8"
B23-55	-	7/32"	3/8"	283.0	191.0	11.142	7.520	9.9	0.390	9.5	3/8"
B22-386	6 MM	-	3/8"	283.0	191.0	11.142	7.520	9.9	0.390	9.5	3/8"
B22-06	6 MM	-	7/16"	313.0	213.0	12.323	8.386	11.5	0.453	11.1	7/16"
B23-386	-	1/4"	3/8"	283.0	191.0	11.142	7.520	9.9	0.390	9.5	3/8"
B23-06	-	1/4"	7/16"	313.0	213.0	13.323	8.386	11.5	0.453	11.1	7/16"
B23-126	-	1/4"	1/2"	336.0	323.0	13.228	12.717	13.1	0.516	12.7	1/2"
B22-7167	7 MM	9/32"	7/16"	316.0	216.0	12.441	8.504	11.5	0.453	11.1	7/16"
B22-07	7 MM	9/32"	1/2"	339.0	235.0	13.346	9.252	13.1	0.516	12.7	1/2"
B22-08	8 MM	5/16"	1/2"	339.0	235.0	13.346	9.252	13.1	0.516	12.7	1/2"
B22-588	8 MM	5/16"	5/8"	402.0	276.0	15.827	10.866	16.3	0.642	16.0	5/8"
B22-10	10 MM	-	5/8"	402.0	276.0	15.827	10.866	16.3	0.642	16.0	5/8"
B23-10	-	3/8"	5/8"	402.0	276.0	15.827	10.866	16.3	0.642	16.0	5/8"
B23-11	-	7/16"	3/4"	521.0	353.0	20.512	13.898	19.1	0.752	18.5	3/4"
B22-12	12 MM	-	3/4"	521.0	353.0	20.512	13.898	19.1	0.752	18.5	3/4"
B23-12	-	1/2"	3/4"	521.0	353.0	20.512	13.898	19.1	0.752	18.5	3/4"
