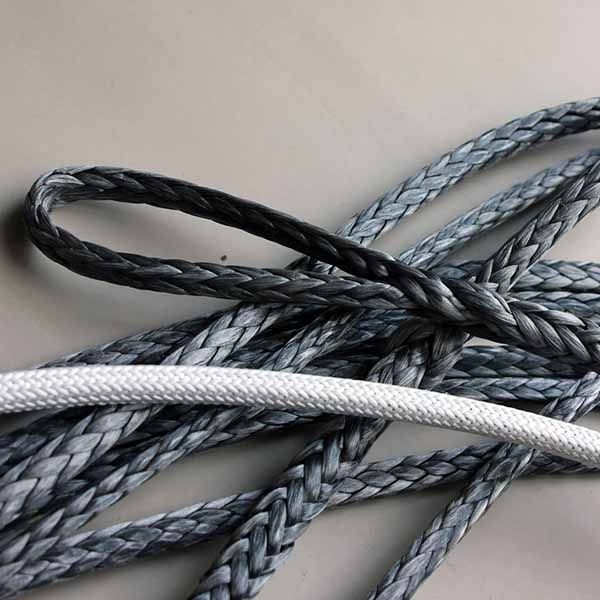

DynaOne Dyneema SK78

Braided 12-plait made of 100% Dyneema^® fibres, extemely high strength and minimal elongation.

12-plait with extremely high strength and minimal elongation.

Flexibility and longevity due to firm rope structure.

Technical data

Elongation at 10% of the breaking load: 0.60 %

Ø [mm]	Weight [kg/100 m]	Bl. real in splice [kN]	Bl. linear DIN according to EN ISO 2307 [kN]
2 mm Ø	0.24	4.50	5.00
2,5 mm Ø	0.36	6.70	7.44
3 mm Ø	0.48	9.00	10.00
4 mm Ø	0.84	14.00	15.56
5 mm Ø	1.43	24.00	26.67
6 mm Ø	1.90	31.90	35.44
7 mm Ø	2.65	38.00	42.22
8 mm Ø	3.30	55.90	62.11
10 mm Ø	4.80	79.80	88.67
12 mm Ø	7.20	119.50	132.78
14 mm Ø	10.00	167.50	186.11
16 mm Ø	11.50	191.50	212.78
18 mm Ø	15.30	243.00	270.00
20 mm Ø	20.10	308.50	342.78
22 mm Ø	23.40	360.00	400.00
24 mm Ø	28.40	437.00	485.56
26 mm Ø	31.00	477.00	530.00
28 mm Ø	38.20	577.50	641.67
30 mm Ø	43.40	634.00	704.44
32 mm Ø	46.50	654.00	726.67
34 mm Ø	52.70	742.00	824.44
36 mm Ø	60.10	830.00	922.22
38 mm Ø	66.80	922.50	1,025.00
40 mm Ø	71.60	950.40	1,056.00
44 mm Ø	90.70	1,203.80	1,337.56
46 mm Ø	99.80	1,320.00	1,466.67
48 mm Ø	105.10	1,390.00	1,544.44
