Dyneema® inside
High performance fibers from the industry leader for minimal elongation and high strength.
Champion heritage

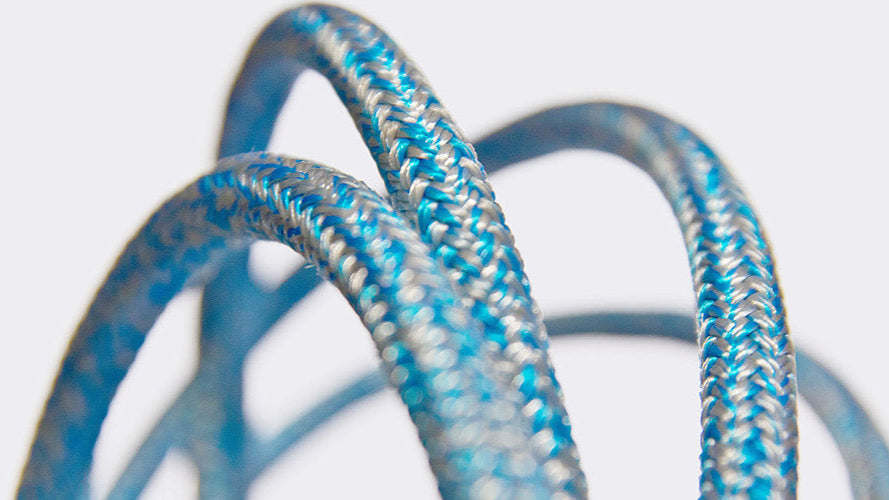

Design based on the legendary MegaTwin Dyneema®, attuned to conventional fittings.
So inexpensive, so universal
Attractive price with optimal suitability for almost all applications on board.
Details
4mm - 16mm ø
Cover: Polyester
Core: SK38
Usage: Universal
Technical data
Elongation at 10% of the breaking load: 0.60 %
Ø
[mm] |
Weight
[kg/100 m] |
Bl. real
in splice
[kN] |
Bl. linear DIN
according to EN ISO 2307
[kN] |
| 6 mm Ø |
2.50 |
11.50 |
12.78 |
| 8 mm Ø |
3.80 |
17.50 |
19.44 |
| 10 mm Ø |
6.70 |
32.00 |
35.56 |
| 12 mm Ø |
9.90 |
50.00 |
55.56 |
| 14 mm Ø |
13.30 |
65.00 |
72.22 |
