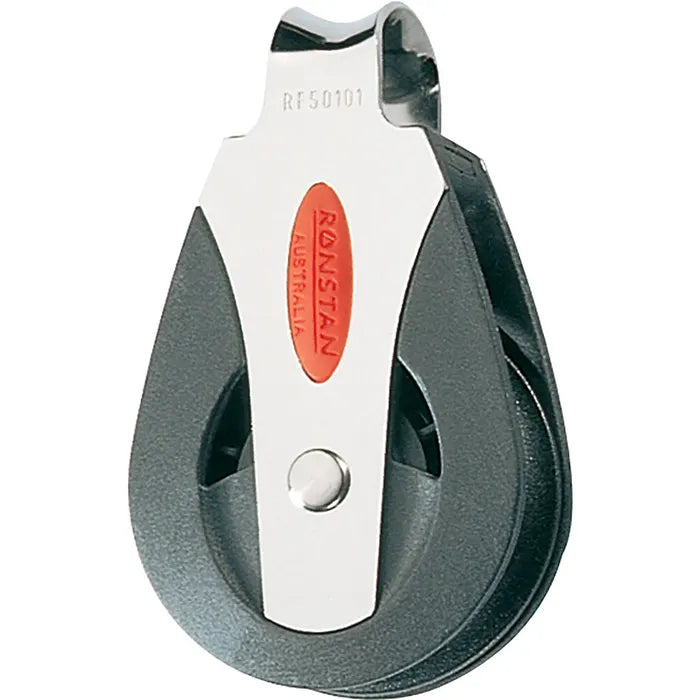

Name: Ronstan Series 50 Ball Bearing Block, Single With Loop Head
Brand: Ronstan
SKU: RF50101
Price: 270.00 HKD
Availability: InStock

Ronstan Series 50 Ball Bearing Block, Single With Loop Head

Roll over image to zoom in Click on image to zoom

Product Information

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.

TECHNICAL INFORMATION

MATERIALS

Acetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks

FEATURES

Low friction, 2-stage ball bearing system.

High static and dynamic load capacity.

Lightweight.

Cheek cut-outs for easy bearing maintenance

SPECIFICATIONS

Product Specifications
Type of Block	Single
Sheave diameter (mm)	50mm
B.L. (kg)	1500
M.W.L. (kg)	500
Max. Rope diameter (mm)	12
Weight (g)	97

Ronstan Series 50 Ball Bearing Block, Single With Loop Head
