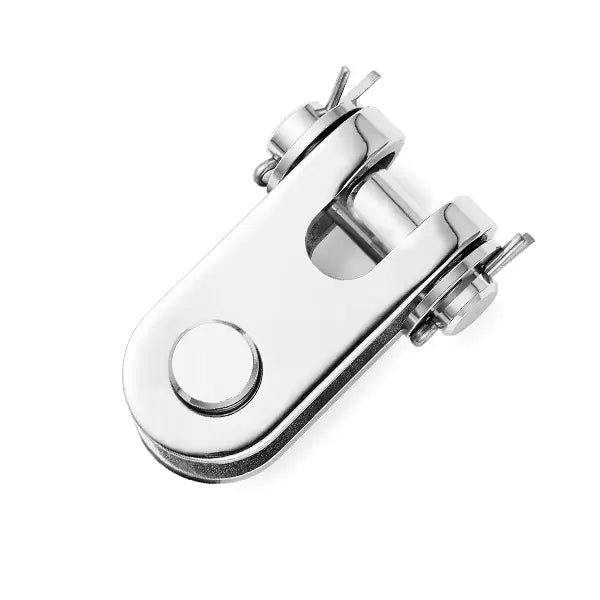

Sta-Lok Double Jaw Toggle

Roll over image to zoom in Click on image to zoom

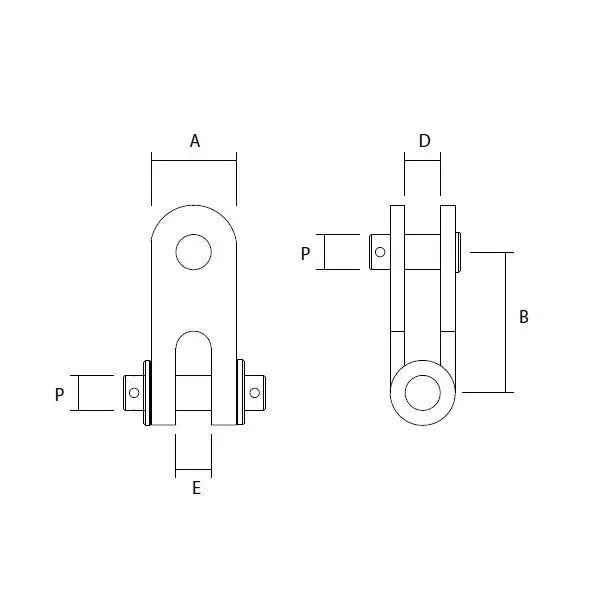

SKU	A (MM)	A (INCH)	B (MM)	B (INCH)	D (MM)	D (INCH)	E (MM)	E (INCH)	P (MM)	P (INCH)	Weight (KG)	Weight (LB)
DJT-14	16.0	0.630	25.0	0.984	7.6	0.299	6.7	0.264	6.4	1/4"	0.020	0.044
DJT-516	19.0	0.748	30.0	1.181	9.2	0.362	8.3	0.327	7.9	5/16"	0.060	0.132
DJT-38	22.2	0.875	34.0	1.338	10.8	0.425	9.9	0.390	9.5	3/8"	0.080	0.176
DJT-716	28.6	1.126	40.0	1.574	12.3	0.484	11.5	0.453	11.1	7/16"	0.120	0.264
DJT-12	32.0	1.260	44.0	1.732	13.0	0.512	13.0	0.512	12.7	1/2"	0.180	0.396
DJT-58	38.1	1.500	52.0	2.047	18.0	0.709	16.3	0.642	16.0	5/8"	0.360	0.792
DJT-34	48.0	1.890	81.0	3.189	20.0	0.790	19.5	0.768	18.5	3/4"	0.900	1.980
DJT-78	60.0	2.362	92.0	3.622	25.0	1.000	23.0	0.906	21.5	7/8"	1.420	3.124
DJT-100	64.0	2.520	99.0	3.898	28.0	1.130	26.0	1.024	25.0	1"	1.860	4.092
DJT-118	70.0	2.756	105.0	4.134	31.5	1.250	29.0	1.142	28.2	1 1/8"	2.850	6.270
DJT-114	80.0	3.150	119.0	4.685	35.0	1.375	34.0	1.339	31.5	1 1/4"	4.020	8.844
DJT-138	90.0	3.543	140.0	5.512	38.0	1.500	35.0	1.378	34.6	1 3/8"	5.430	11.946

Description
