- Sta-Lok Self-Fit Terminal, the reusable alternative to swage
- Only basic hand tools required
- Quick and easy to install
- No pre-measurement needed
- Guaranteed stronger than wire rope
- For right hand and left hand lay wire rope
- Manufactured from high specification 316 stainless steel
- Packed for 1×19 wire as standard
- Different wedges are available to terminate 7 strand & compacted wire rope
Designed for Reliable Wire Rope Terminations

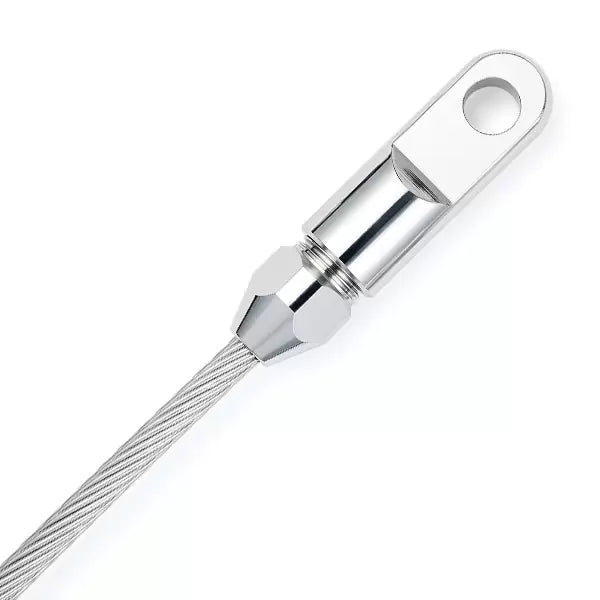

The Sta-Lok Eye is a high-performance, reusable alternative to swage terminals, ideal for sailors, marine engineers, riggers, architects, and industrial professionals requiring a strong and durable fitting for wire rope assemblies.
Engineered for Strength and Onsite Flexibility
Manufactured from high-strength 316 stainless steel for maximum corrosion resistance, the Sta-Lok Eye is proven to be stronger than the wire itself. It is quick and easy to install using basic hand tools, with no pre-measurement required, making it ideal for onsite or onboard assembly. Supplied as standard for 1×19 wire rope, it can also accommodate 7×7, 7×19, and compact strand constructions with the appropriate wedges, available separately.
Built for Long-Term Performance Across Applications
Suitable for both right-hand and left-hand lay wire ropes, the Sta-Lok Eye delivers reliable mechanical performance in marine, architectural, and industrial applications. Its robust design ensures dependable, long-term service even in demanding environments. Refer to the technical chart for full dimensional details.
| SKU |
Wire Size (Metric) |
Wire Size (Imperial) |
A (MM) |
A (INCH) |
B (MM) |
B (INCH) |
D (MM) |
D (INCH) |
H (MM) |
H (INCH) |
Weight (KG) |
Weight (LB) |
| 033-03 |
3 MM |
1/8" |
17.9 |
0.705 |
10.0 |
0.393 |
5.0 |
0.196 |
6.5 |
1/4" |
0.020 |
0.044 |
| 033-04 |
4 MM |
5/32" |
20.3 |
0.800 |
14.7 |
0.580 |
5.8 |
0.230 |
8.0 |
5/16" |
0.040 |
0.088 |
| 033-05 |
5 MM |
- |
24.4 |
0.960 |
18.0 |
0.710 |
7.5 |
0.295 |
10.0 |
3/8" |
0.080 |
0.176 |
| 133-05 |
- |
3/16" |
24.4 |
0.960 |
18.0 |
0.710 |
7.5 |
0.295 |
10.0 |
3/8" |
0.080 |
0.176 |
| 133-55-3/8 |
- |
7/32" |
32.4 |
1.276 |
23.7 |
0.933 |
9.5 |
0.375 |
10.0 |
3/8" |
0.140 |
0.309 |
| 133-55-7/16 |
- |
7/32" |
31.7 |
1.248 |
23.0 |
0.904 |
9.5 |
0.375 |
11.5 |
7/16" |
0.140 |
0.309 |
| 033-06 |
6 MM |
- |
31.0 |
1.219 |
22.2 |
0.875 |
9.5 |
0.375 |
13.0 |
1/2" |
0.140 |
0.309 |
| 133-06-3/8 |
- |
1/4" |
32.4 |
1.276 |
23.7 |
0.933 |
9.5 |
0.375 |
10.0 |
3/8" |
0.140 |
0.309 |
| 133-06-7/16 |
- |
1/4" |
31.7 |
1.248 |
23.0 |
0.904 |
9.5 |
0.375 |
11.5 |
7/16" |
0.140 |
0.309 |
| 133-06 |
- |
1/4" |
31.0 |
1.219 |
22.2 |
0.875 |
9.5 |
0.375 |
13.0 |
1/2" |
0.140 |
0.309 |
| 033-07 |
7 MM |
9/32" |
32.5 |
1.281 |
24.6 |
0.969 |
10.5 |
0.413 |
13.0 |
1/2" |
0.160 |
0.353 |
| 033-08-1/2 |
8 MM |
5/16" |
35.7 |
1.406 |
27.0 |
1.062 |
12.0 |
0.472 |
13.0 |
1/2" |
0.240 |
0.529 |
| 033-08-5/8 |
8 MM |
5/16" |
35.7 |
1.406 |
27.0 |
1.062 |
13.5 |
0.531 |
16.0 |
5/8" |
0.280 |
0.617 |
| 033-10 |
10 MM |
- |
41.1 |
1.619 |
29.2 |
1.150 |
13.5 |
0.531 |
16.0 |
5/8" |
0.340 |
0.750 |
| 033-10-3/4 |
10 MM |
- |
41.1 |
1.619 |
29.2 |
1.150 |
13.5 |
0.531 |
19.5 |
3/4" |
0.400 |
0.882 |
| 133-10 |
- |
3/8" |
41.1 |
1.619 |
29.2 |
1.150 |
13.5 |
0.531 |
16.0 |
5/8" |
0.340 |
0.750 |
| 133-10-3/4 |
- |
3/8" |
41.1 |
1.619 |
29.2 |
1.150 |
13.5 |
0.531 |
19.5 |
3/4" |
0.400 |
0.882 |
| 133-11 |
- |
7/16" |
42.8 |
1.687 |
33.3 |
1.312 |
19.0 |
0.748 |
19.5 |
3/4" |
0.680 |
1.499 |
| 033-12 |
12 MM |
- |
42.8 |
1.687 |
33.3 |
1.312 |
19.0 |
0.748 |
19.5 |
3/4" |
0.680 |
1.499 |
| 033-12-7/8 |
12 MM |
- |
42.8 |
1.687 |
33.3 |
1.312 |
19.0 |
0.748 |
22.5 |
7/8" |
0.700 |
1.543 |
| 133-12 |
- |
1/2" |
42.8 |
1.687 |
33.3 |
1.312 |
19.0 |
0.748 |
19.5 |
3/4" |
0.680 |
1.499 |
| 133-12-7/8 |
- |
1/2" |
42.8 |
1.687 |
33.3 |
1.312 |
19.0 |
0.748 |
22.5 |
7/8" |
0.700 |
1.543 |
| 033-14 |
14 MM |
9/16" |
55.6 |
2.187 |
38.1 |
1.500 |
20.0 |
0.788 |
22.5 |
7/8" |
1.100 |
2.425 |
| 033-14-1 |
14 MM |
9/16" |
55.6 |
2.187 |
38.1 |
1.500 |
23.0 |
0.905 |
26.0 |
1" |
1.220 |
2.690 |
| 033-16 |
16 MM |
5/8" |
59.0 |
2.326 |
40.0 |
1.576 |
20.0 |
0.788 |
22.5 |
7/8" |
1.420 |
3.131 |
| 033-16-1 |
16 MM |
5/8" |
60.0 |
2.364 |
40.0 |
1.576 |
20.0 |
0.788 |
25.4 |
1" |
1.700 |
3.748 |
| 033-19 |
19 MM |
3/4" |
68.3 |
2.687 |
49.2 |
1.937 |
27.0 |
1.062 |
28.6 |
1 1/8" |
2.820 |
6.217 |
| 033-22 |
22 MM |
7/8" |
82.6 |
3.250 |
60.3 |
2.375 |
33.3 |
1.312 |
35.0 |
1 3/8" |
3.960 |
8.730 |
| 033-26 |
26 MM |
1" |
86.0 |
3.375 |
60.3 |
2.375 |
33.3 |
1.312 |
35.0 |
1 3/8" |
5.300 |
11.684 |
