Designed for Professionals and Sailors

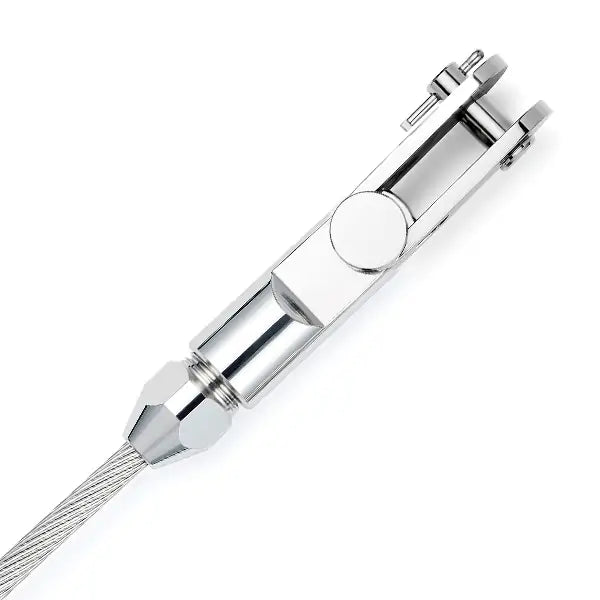

The Sta-Lok Self-Fit Eye Toggle is ideal for sailors, marine engineers, architects, riggers, and industrial professionals requiring a reliable, high-performance method of terminating wire rope without the need for specialist equipment.
Engineered for Secure Wire Termination
Providing a simple and effective solution for terminating wire rope with basic hand tools, the Sta-Lok Self-Fit Eye Toggle is supplied for 1×19 wire as standard, with wedges available separately for 7-strand and compacted wire ropes. It is suitable for marine, architectural, and industrial applications where pre-measurements may be unknown and offers an assemble on-site solution.
Built for Strength, Flexibility, and Durability
Manufactured from high-quality 316 stainless steel, the fitting delivers exceptional strength, corrosion resistance, and performance in demanding environments. The toggle fork design allows full articulation in two planes, reducing wire stress and enhancing durability. The fitting is fully reusable, requiring only a new wedge when re-terminating, and is designed and manufactured to be stronger than the rope itself. Suitable for both right-hand and left-hand lay wire ropes.
- Manufactured from high specification 316 stainless steel
- Suitable for right hand and left hand lay wire rope
- Packed for 1×19 wire as standard – Different wedges are available to terminate 7 strand & compacted strand wire ropes
- Wedges should be replaced when re-terminating

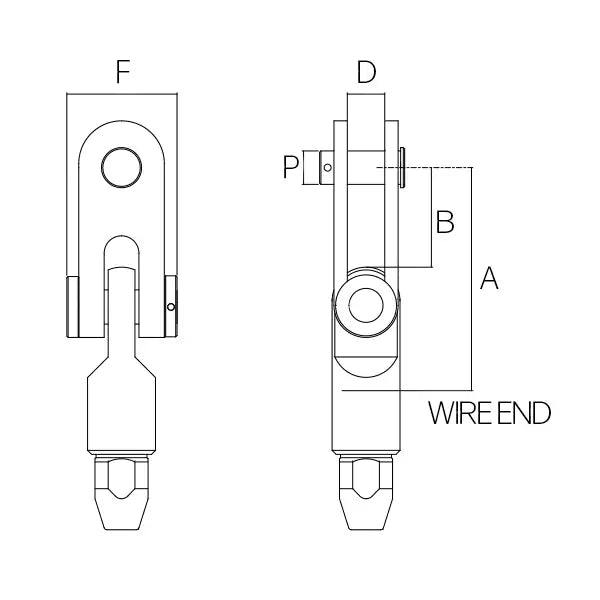

| SKU |
Wire Size (Metric) |
Wire Size (Imperial) |
A (MM) |
A (INCH) |
B (MM) |
B (INCH) |
D (MM) |
D (INCH) |
F (MM) |
F (INCH) |
P (MM) |
P (INCH) |
| 150ET-11 |
- |
7/16" |
125.0 |
4.921 |
54.0 |
2.125 |
20.0 |
0.787 |
66.0 |
2.589 |
18.5 |
3/4" |
| 050ET-12 |
12 MM |
- |
125.0 |
4.921 |
54.0 |
2.125 |
20.0 |
0.787 |
66.0 |
2.589 |
18.5 |
3/4" |
| 050ET-12-7/8 |
12 MM |
- |
126.0 |
4.960 |
65.0 |
2.559 |
25.0 |
0.984 |
98.0 |
3.071 |
21.5 |
7/8" |
| 150ET-12 |
- |
1/2" |
125.0 |
4.921 |
54.0 |
2.125 |
20.0 |
0.787 |
66.0 |
2.589 |
18.5 |
3/4" |
| 150ET-12-7/8 |
- |
1/2" |
126.0 |
4.960 |
65.0 |
2.559 |
25.0 |
0.984 |
78.0 |
3.071 |
21.5 |
7/8" |
| 050ET-14 |
14 MM |
9/16" |
142.0 |
5.590 |
63.0 |
2.480 |
25.0 |
0.984 |
78.0 |
3.071 |
21.5 |
7/8" |
| 050ET-14-1 |
14 MM |
9/16" |
153.0 |
6.023 |
65.0 |
2.559 |
28.0 |
1.102 |
82.0 |
3.228 |
25.0 |
1" |
| 050ET-16-1 |
16 MM |
5/8" |
162.0 |
6.377 |
68.0 |
2.677 |
28.0 |
1.102 |
82.0 |
3.228 |
25.0 |
1" |
| 050ET-19 |
19 MM |
3/4" |
178.0 |
7.007 |
73.0 |
2.874 |
31.5 |
1.240 |
89.0 |
3.504 |
28.2 |
1 1/8" |
| 050ET-22 |
22 MM |
7/8" |
202.0 |
7.952 |
79.0 |
3.110 |
35.0 |
1.378 |
98.0 |
3.858 |
31.5 |
1 1/4" |
| 050ET-26 |
26 MM |
1" |
228.0 |
8.976 |
99.0 |
3.897 |
38.0 |
1.496 |
110.0 |
4.331 |
34.6 |
1 3/8" |
