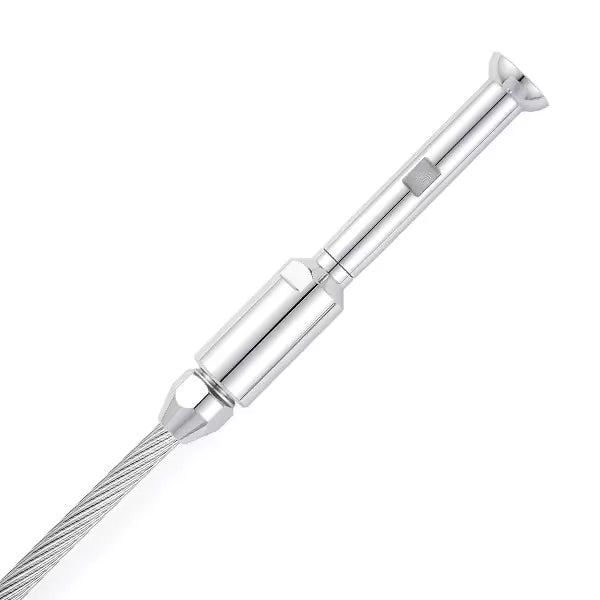

- Sta-Lok Self-Fit Terminal, the reusable alternative to swage
- Only basic hand tools required
- No pre-measurement needed
- Quick and easy to install
- Guaranteed stronger than wire rope
- For right hand and left hand lay wire rope
- Packed for 1×19 wire as standard
- Manufactured from high specification 316 stainless steel
- Different wedges are available to terminate 7 strand & compacted strand wire ropes
- Two part assembly – Threadlock recommended
*Warning – Always check Tip Cup and Spreader dimensions for correct head sizing. Stemball Cups may be required.
| SKU |
Wire Size (Metric) |
Wire Size (Imperial) |
A (MM) |
A (INCH) |
C (MM) |
C (INCH) |
Weight (KG) |
Weight (LB) |
| 146-55 |
- |
7/32" |
96.0 |
3.779 |
21.2 |
0.835 |
0.180 |
0.397 |
| 046-06 |
6 MM |
- |
96.0 |
3.779 |
21.2 |
0.835 |
0.180 |
0.397 |
| 146-06 |
- |
1/4" |
96.0 |
3.779 |
21.2 |
0.835 |
0.200 |
0.441 |
| 046-07 |
7 MM |
9/32" |
110.0 |
4.330 |
21.6 |
0.850 |
0.280 |
0.617 |
| 046-08 |
8 MM |
5/16" |
125.0 |
4.921 |
26.5 |
1.043 |
0.380 |
0.838 |
| 046-10 |
10 MM |
- |
168.0 |
6.614 |
27.6 |
1.086 |
0.500 |
1.102 |
| 146-10 |
- |
3/8" |
168.0 |
6.614 |
27.6 |
1.086 |
0.500 |
1.102 |
