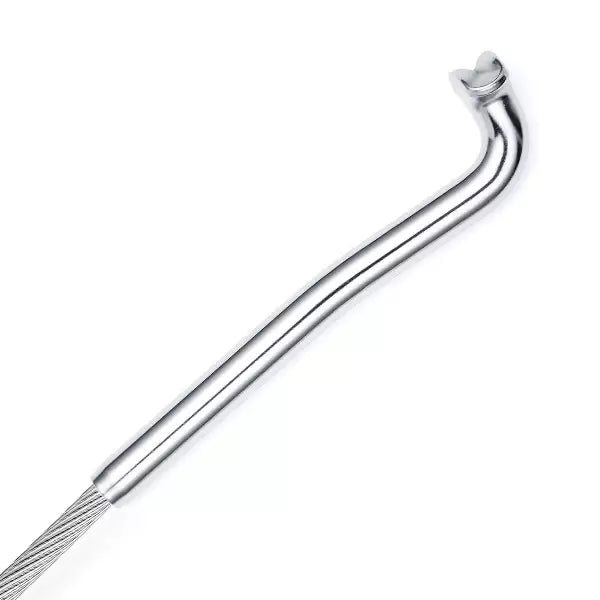

Sta-Lok Swage T

Sta-Lok Swage T

Roll over image to zoom in Click on image to zoom

Sta-Lok Swage T

Sta-Lok Swage T

Sta-Lok Swage T

Select: 044-03 SWAGE T TERMINAL 3mm

Price:

HK$161.00

Quantity:

Suitable for use with rotary & fixed die swaging machine
Manufactured from high specification 316 stainless steel
Use with 1×19, 7 Strand and compacted stand wire rope (IWRC)
Minimum hole depth 10x wire diameter
Metric and Inch wire ropes

SKU	Wire Size (Metric)	Wire Size (Imperial)	A (MM)	A (INCH)	B (MM)	B (INCH)	C (MM)	C (INCH)	D (MM)	D (INCH)	Weight (KG)	Weight (LB)
044-03	3 MM	-	6.3	0.248	86.0	3.386	6.3	0.248	15.0	0.591	0.025	0.055
044-04	4 MM	5/32"	7.5	0.295	101.0	3.976	7.5	0.295	16.5	0.649	0.040	0.088
044-05	5 MM	3/16"	9.0	0.354	112.0	4.409	9.0	0.354	18.5	0.728	0.060	0.132
044-06	6 MM	-	12.5	0.492	136.0	5.354	12.6	0.496	27.7	1.089	0.140	0.309
144-06	-	1/4"	12.5	0.492	136.0	5.354	12.6	0.496	27.7	1.089	0.140	0.309
044-07	7 MM	9/32"	14.2	0.559	148.0	5.826	14.0	0.551	30.0	1.180	0.180	0.397
044-08	8 MM	5/16"	16.0	0.630	184.0	7.244	16.0	0.630	34.4	1.353	0.300	0.661
044-10	10 MM	-	17.8	0.701	214.0	8.425	17.5	0.689	36.4	1.434	0.420	0.926
144-10	-	3/8"	17.8	0.701	214.0	8.425	17.5	0.689	36.4	1.434	0.420	0.926
