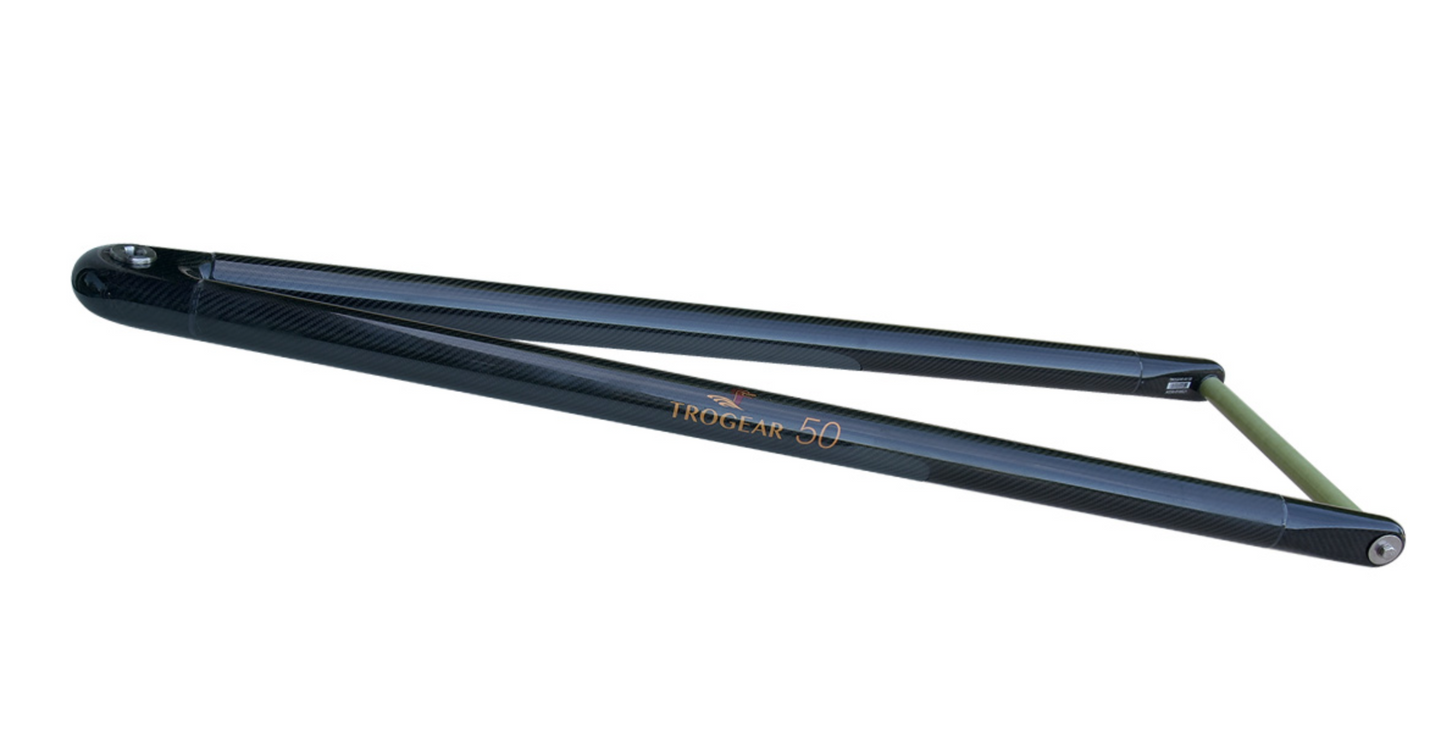

Suited for racers with boats up to 13m (45′).
Bowsprit base model includes parts needed for Through Hull install:
- G10 Fiberglass hinge tube
- Hinge shaft: Titanium w/bolts or quick release pin
- Marine grade bolts and washers
-Does not include parts for the bobstay rigging.
-Quick Release Adapter optional upgrade (+ $980)
| Length: |
126cm (50″)
|
| Weight: |
2.6 kg (5.7 lbs)
|
| Extension past bow: |
91.5cm (~36)
|
| Inside width at hinge: |
32.7cm (12.9)
|
| Shaft material: |
Titanium
|
| Bushing: |
Titanium
|
| Max Asymmetrical Spinnaker: |
120m2 (1300ft2)
|
| Max Code 0: |
100m2 (1075ft2)
|
| *SWL: |
1200kg (2750 lbs) / The SWL is the maximum load created by the bobstay on the bowsprit at the attachment point of the bobstay (30deg angle) to the bowsprit.
|
Allow 2-3 weeks for delivery
Contact us for installation options
