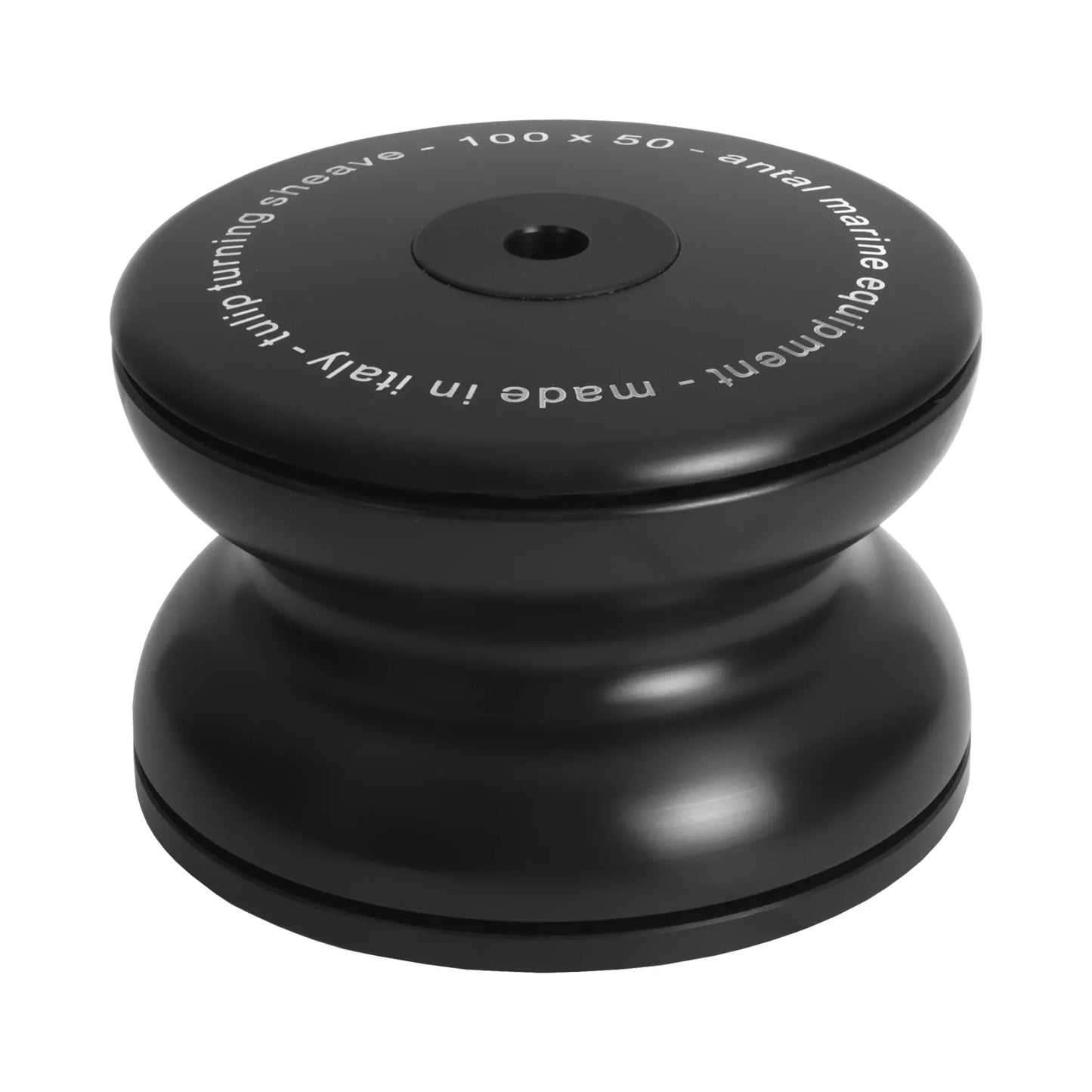

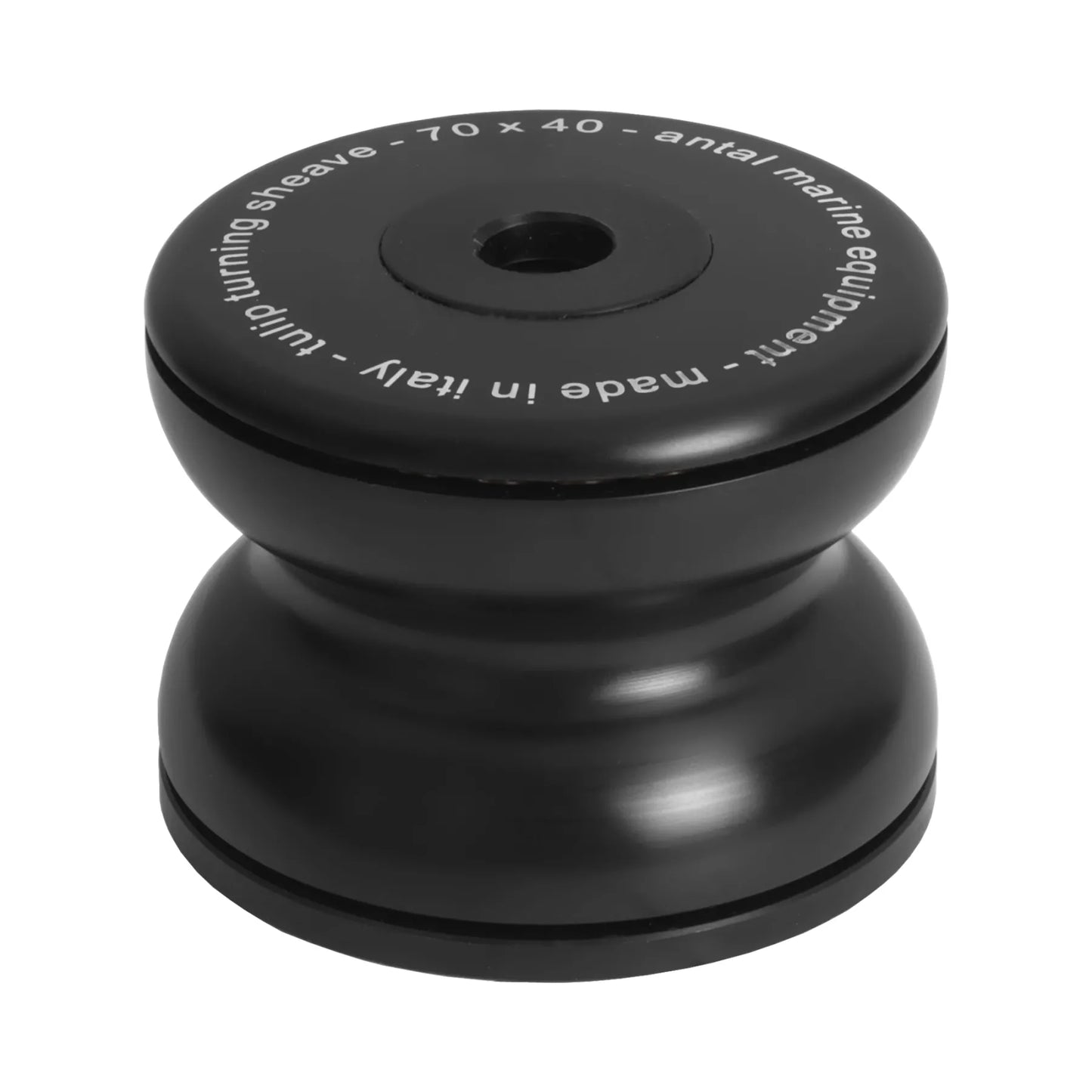

Mounted aft of a set of rope clutches, the turning sheave redirects each line to the most suitable winch. Mounting screws, nuts and washers are included.
This sheave is fitted with 4 wide Torlon ball bearings, this is the best solution when it is necessary to redirect the line to any angle.
Material: Aluminum
Sheave material: Resin
Side bearing: Delrin Balls
Radial bearing: Composite Fibre
Sheave Ø 50mm, SWL 1000 kg, Dimensions 40mm x 50mm, Max Line Ø 10mm
Sheave Ø 70mm, SWL 1400 kg, Dimensions 52mm x 70mm, Max Line Ø 12mm
Sheave Ø 100mm, SWL 3000kg, Dimensions 66mm x 100mm, Max Line Ø 14mm
